BSPFR340-PET-BK
Art.-No. 170-03208 | BSPFR340-PET-BK |  Details

Polyester material is specially treated for flame retardance.

    • Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required
    • Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation
    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)

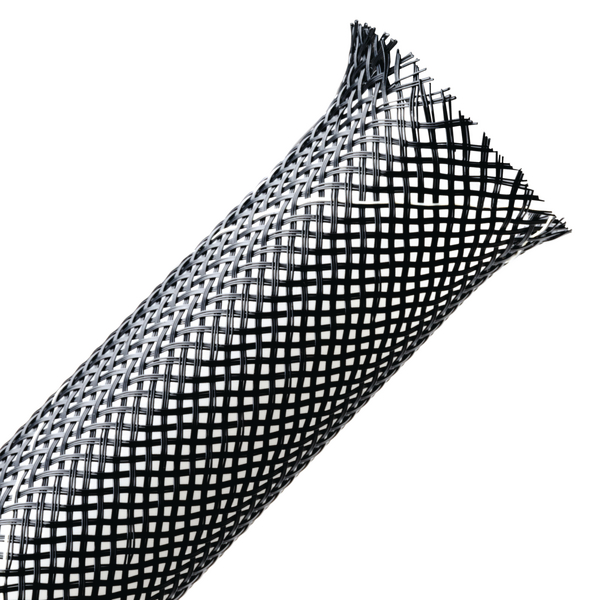

    Description A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSPFR340-PET-BK
    Pack Cont. 396.24m
    Package Content packed in box
    Type BSPFR340
    Bundle Diameter max (metric) 31.75mm
    Bundle ∅ 12.7-31.75mm
    Bundle ∅ min. 12.7mm
    Diameter (D) 19.05mm
    Length (L) 396.24m
    Nominal ∅ 0.75"
    Nominal ∅ 19.05mm
    ∅ D 0.75"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1, Mil-202, FAR 25, FMVSS 302
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026498690
    Reel Length 1300.0ft
    Reel Length 396.24m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
