Fray Resistant
Art.-No. 170-03012 | BSPSC120-PET-BK |  Details

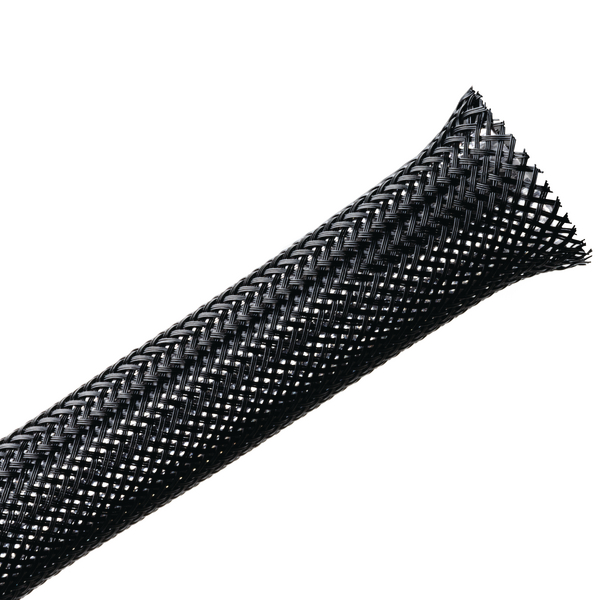

Expandable braided sleeving ends will not fray, even when cut with scissors.

    • Cuts with scissors without fraying ends enables field installations without need for hot knife
    • Material construction offers excellent abrasion and cut-through protection as well as inertness to common chemicals and fungus
    • Expands to 150% of easy installation and reduced assembly time requirements
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Description A versatile and economical general purpose braided sleeving that resists fraying when cut with ordinary scissors.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSPSC120-PET-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Fray Resistant
    Type BSPSC120
    Bundle Diameter max (metric) 19.1mm
    Bundle ∅ 6.4-19.1mm
    Bundle ∅ min. 6.4mm
    Diameter (D) 12.7mm
    Length (L) 30.48m
    Nominal ∅ 0.5"
    Nominal ∅ 12.7mm
    ∅ D 0.50"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026431963
    Packaging 1 - Weight (kg) 0.37kg
    Reel Length 100.0ft
    Reel Length 30.5m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
