05/11/2024

BSPSW140LB-PET-BK
Art.-No. 170-03133 | BSPSW140LB-PET-BK Details

  • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
  • Unique construction retains shape and rigidity throughout unrolling
  • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
Colour Black (BK)

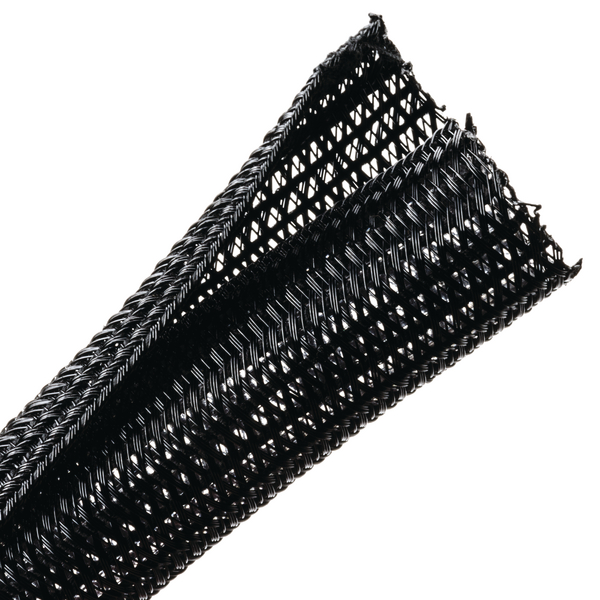

Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSPSW140LB-PET-BK
Pack Cont. 914.40m
Package Content packed in box
Type BSPSW140LB
Bundle Diameter max (metric) 6.4mm
Bundle ∅ 2.54-6.4mm
Bundle ∅ min. 2.54mm
Diameter (D) 6.4mm
Length (L) 91.4m
Nominal ∅ 0.25"
Nominal ∅ 6.4mm
Wall (WT) 0.64mm
Wall (WT) 0.025"
∅ D 0.25"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026443683
Packaging 1 - Weight (kg) 8.2kg
Reel Length 3000.0ft
Reel Length 914.4m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
