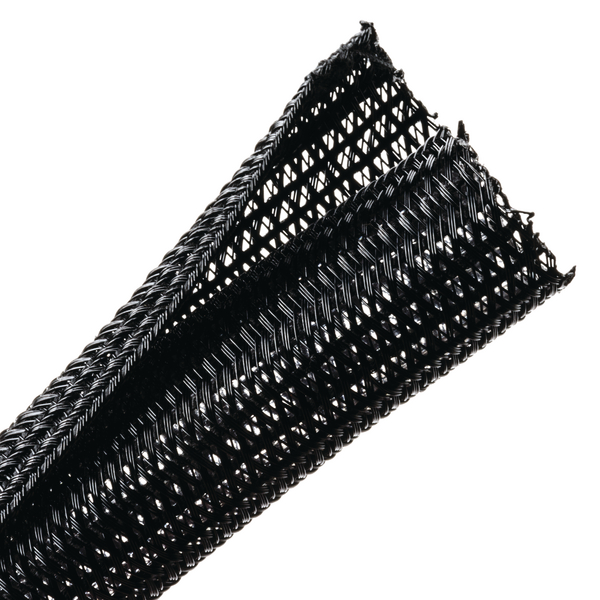

BSPSW340B-PET-BK
Art.-No. 170-03127
| BSPSW340B-PET-BK
|
Details
- Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
- Unique construction retains shape and rigidity throughout unrolling
- Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
| Colour | Black (BK) |
| Description | A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires. |
| Material | Polyester (PET) |
| Open, post termination (Yes/No) | No |
| PART DESCRIPTION | BSPSW340B-PET-BK |
| Pack Cont. | 30.48m |
| Package Content packed in | box |
| Type | BSPSW340B |
Download
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Melting Point | +250 °C |
| Operating Temperature | -70 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E147924 |
| UV-Stabilised | Yes |
