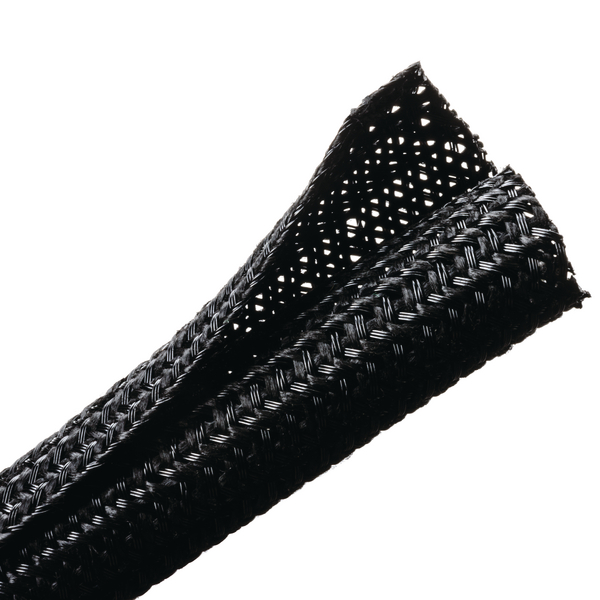

PET Split Wrap
Art.-No. 170-03140 | BSSWFR180B-PET-BK |  Details

Lateral split allows the braided sleeving to open up to accommodate a variety of bundling requirements.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSSWFR180B-PET-BK
    Pack Cont. 121.92m
    Package Content packed in box
    Product Group PET Split Wrap
    Type BSSWFR180B
    Bundle Diameter max (metric) 3.2mm
    Bundle ∅ 2.54-3.2mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 3.2mm
    Length (L) 121.9m
    Nominal ∅ 0.125"
    Nominal ∅ 3.18mm
    Wall (WT) 0.61mm
    Wall (WT) 0.024"
    ∅ D 0.13"
    Abrasion Resistance High
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1, FAR 25
    Halogen-free Yes
    Limited Fire Hazard Yes
    Melting Point +230 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026443751
    Packaging 1 - Weight (kg) 0.36kg
    Reel Length 400.0ft
    Reel Length 121.9m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
