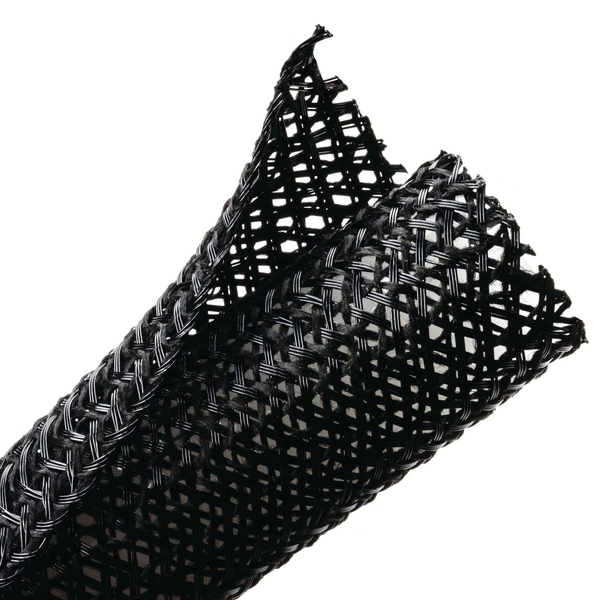

PET Split Wrap
Art.-No. 170-03147 | BSSWFR200B-PET-BK |  Details

Lateral split allows the braided sleeving to open up to accommodate a variety of bundling requirements.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSSWFR200B-PET-BK
    Pack Cont. 15.24m
    Package Content packed in box
    Product Group PET Split Wrap
    Type BSSWFR200B
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 2.54-50.8mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 50.8mm
    Length (L) 15.2m
    Nominal ∅ 2"
    Nominal ∅ 50.8mm
    Wall (WT) 0.97mm
    Wall (WT) 0.038"
    ∅ D 2.0"
    Abrasion Resistance High
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1, FAR 25
    Halogen-free Yes
    Limited Fire Hazard Yes
    Melting Point +230 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026443829
    Packaging 1 - Weight (kg) 0.82kg
    Reel Length 50.0ft
    Reel Length 15.2m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
