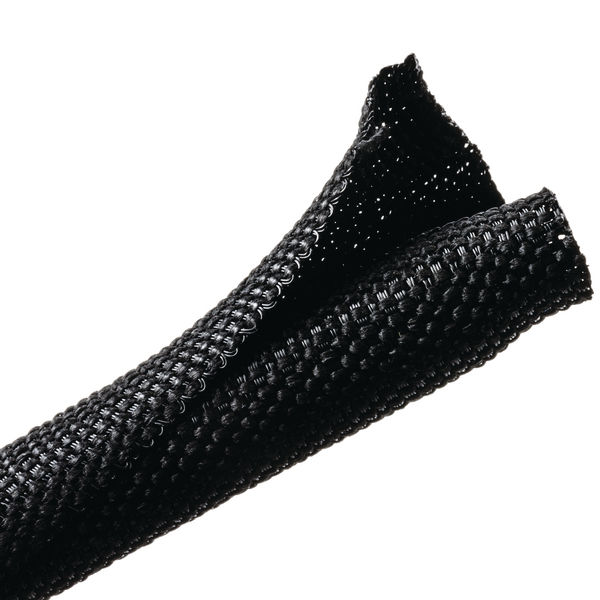

BSSWV380B-PET-BK
Art.-No. 170-03181 | BSSWV380B-PET-BK |  Details

Split overlapping design allows quick and easy access to wires and cables for future maintenance or inspection without disassembly

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSSWV380B-PET-BK
    Pack Cont. 137.16m
    Package Content packed in reel
    Type BSSWV380B
    Bundle Diameter max (metric) 9.5mm
    Bundle ∅ 2.54-9.5mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 9.7mm
    Length (L) 137.2m
    Nominal ∅ 0.38"
    Nominal ∅ 9.5mm
    Wall (WT) 0.68mm
    Wall (WT) 0.027"
    ∅ D 0.38"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026476582
    Packaging 1 - Weight (kg) 3.06kg
    Reel Length 450.0ft
    Reel Length 137.16m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
