22/12/2024

G6SEFP-19-GF-RD
Art.-No. 176-10503 | G6SEFP-19-GF-RD |  Details

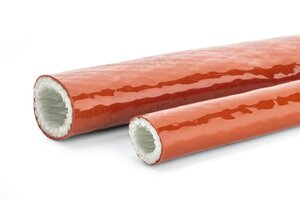

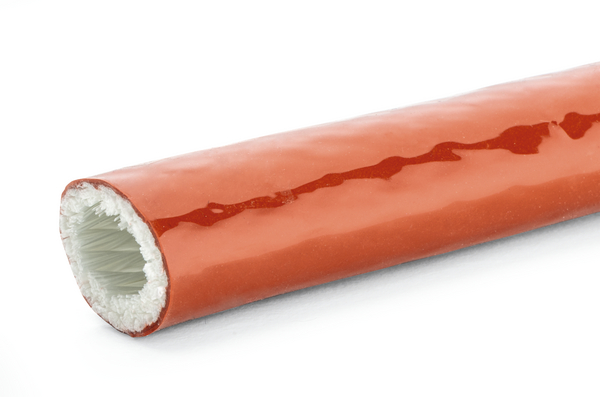

Helaglass G6SEFP

    Add to watchlist
    Downloads Datasheet
    Colour Red (RD)
    Material Glass-fibre (GF)
    Open, post termination (Yes/No) No
    PART DESCRIPTION G6SEFP-19-GF-RD
    Pack Cont. 20m
    Package Content packed in reel
    Type G6SEFP-19
    Length (L) 20m
    Nominal ∅ 19mm
    Dielectric Strength 10.0kV/mm
    Operating Temperature -60 °C to +250 °C
    ROHS compliant Yes
    Specifications
    Specifications CEI EN 50200:2016, EN 20200:2015, EN 45545-2
    Country of Origin CN
    GTIN-13 / EAN 4031026644011
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
