FDN 59 port AB length tubed closure with 18 NZDF SE-B trays fitted with 2 x 3A splice bridges
Art.-No. 857-00648 | FDNTB-ABXCD31 |  Details

FDN AB-Length Closure

    • Maximum 216 fibre splice capacity
    • 58 round ports and 1 oval port
    • Supplied with 18 NZDF SE-B Trays fitted with 2 x 3A (Green) splice protector inserts
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Colour Black (BK)
    Content FDN 59 Port Base
    AB-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Tray Support Frame
    Anchor Fixing Kit (3)
    18 x NZDF SE-B 3A Splice Trays
    Tray Tool
    Hook and Loop Tray Securing Straps
    Transportation Tubing
    Tubefix – Tube to Tray Securing Blocks
    Hook and Loop Management Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 – 25
    Green Marker 1 – 25
    Cover Type AB
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FDNTB-ABXCD31
    Package Content packed in kit
    Port L, T, S, B, R
    Port count 1, 2, 4, 2, 52
    Product Family AB Length
    Product Group FDN 59 Port Tubed Closure
    Qty Trays 18
    Short Description FDN 59 port AB length tubed closure with 18 NZDF SE-B trays fitted with 2 x 3A splice bridges
    Splice Capacity 216

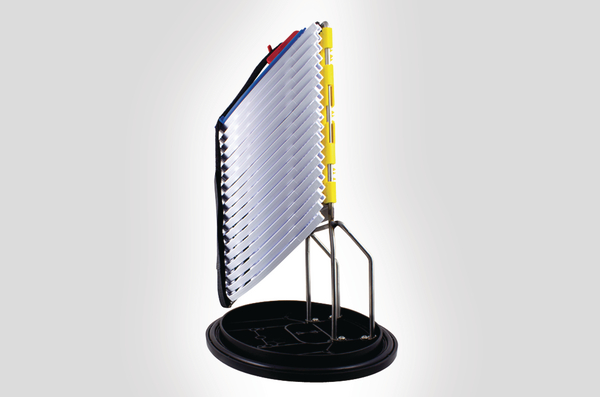

    Technical Description The FDN 59 Port AB Length closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 NZDF SE-B 3A Splice Trays. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
    Type FDNTB-ABXCD31
    Type of Tray Hellipse NZDF SE-A
    Variant Outdoor FTTx Enclosures

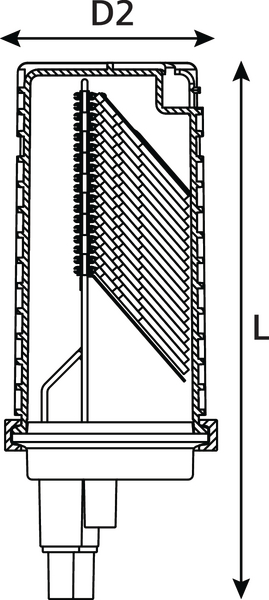

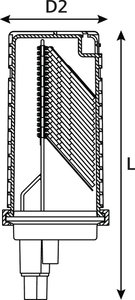

    D1 312mm
    D2 222mm
    Length 561mm
    Length (L) 561mm
    Country of Origin GB
    GTIN-13 / EAN 5022660112591
    Packaging 1 - Height (m) 0.72m
    Packaging 1 - Length (m) 0.32m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.07373m³
    Packaging 1 - Weight (kg) 6.5kg
    Packaging 1 - Width (m) 0.32m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
