Fibre Connectors
Art.-No. 855-14215 | PFCSC Details

  • Features keyed connector to ensure secure mating into the adaptor
  • Suitable for 2-3mm cables
  • Connectors supplied in separate bags
  • 3.0mm boot
Colour Beige (BGE)
Connector Type SC
Description The SC Connector is a proven design which is widely used in modern optical fibre systems and is keyed to ensure correct orientation on insertion.
PART DESCRIPTION PFCSC
Pack Cont. 1pc.
Package Content packed in bag
Performance Category Multimode
Port count 2
Product Family Multimode SC Duplex Connector
Product Group Fibre Connectors

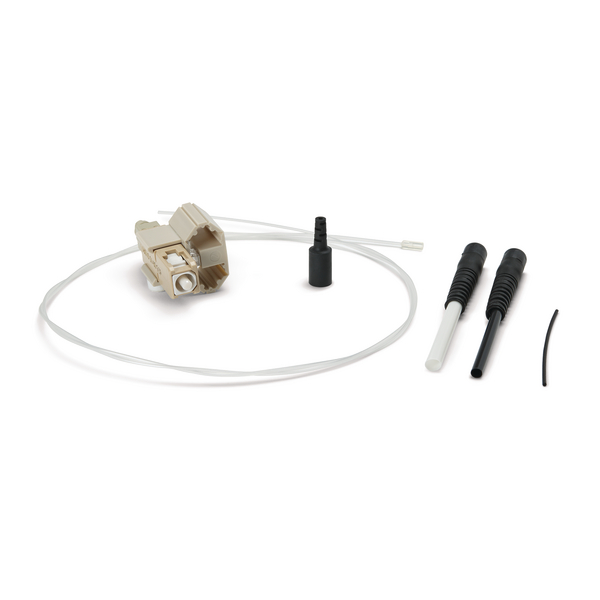

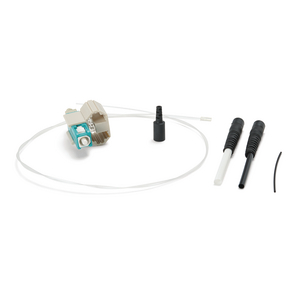

Technical Description The Multimode SC Duplex Connectors are supplied in individual bags including the connector, dust cover and a 3.0mm boot. All fibre adaptors and connectors comply with the IEC874-14 standard ensuring inter-operability.
Type PFCSC
Height (H) 9.3mm
Width (W) 28mm
Optical Performance Multimode
Country of Origin JP
Dimensions W x H x D 28 mm x 9.3 mm x
GTIN-13 / EAN 4031026328805
Packaging 3 - Height (m) 0.142875m
Packaging 3 - Length (m) 0.5159375m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0229
Packaging 3 - Width (m) 0.31115m
ETIM 7.0 Key EC000034
ETIM 8.0 Key EC000034
ETIM 9.0 Key EC000034
UNSPSC Key 43223310
