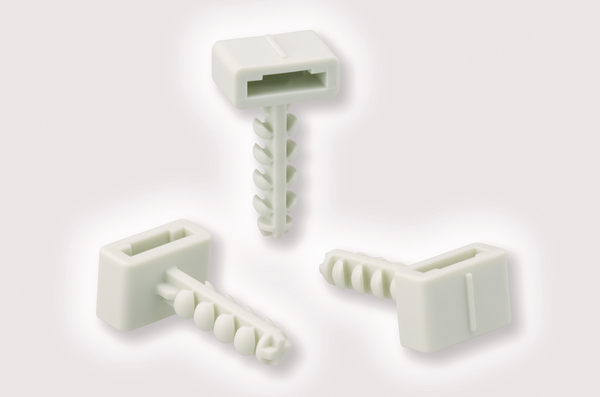

Cable tie mount for hole (round), Wmax=12.7mm, ∅6.0 mm, beige, 20pcs.
Art.-No. 151-03205 | CA1-PA66W-BGE |  Details

Concrete Anchor

    • Easy installation of plastic flexible tubes to concreate surfaces.
    • Simply tap into predrilled holes.
    • Can be used for indoor and outdoor applications.
    Add to watchlist
    Downloads Datasheet

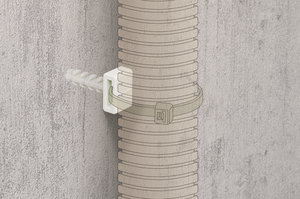

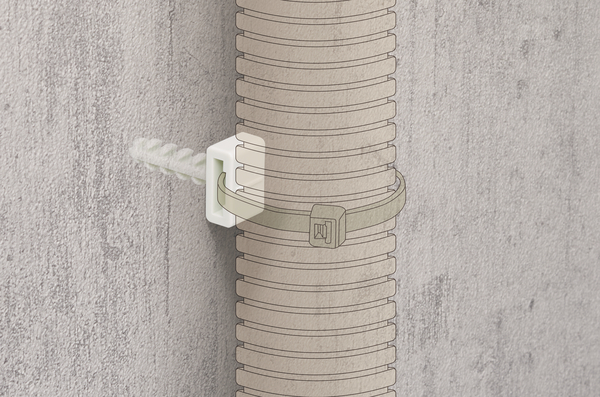

    Application Concrete Anchor provides a permanent method of attaching plastic flexible tubes to concreate or siding board surfaces. CA1 simply tap into predrilled holes and can be used for indoor and outdoor applications.
    Colour Ivory (IV)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION CA1-PA66W-BGE
    Pack Cont. 20pcs.
    Package Content packed in bag
    Product Family CA1
    Product Group Concrete Anchor
    Type CA1
    Length (L) 33mm
    Length (L2) 7.4mm
    Length (L3) 2mm
    Strap Width max. (G) 12.7mm
    Width (W) 18mm
    for Hole ∅ (FH) 6.0 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387121742
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
