23/12/2024

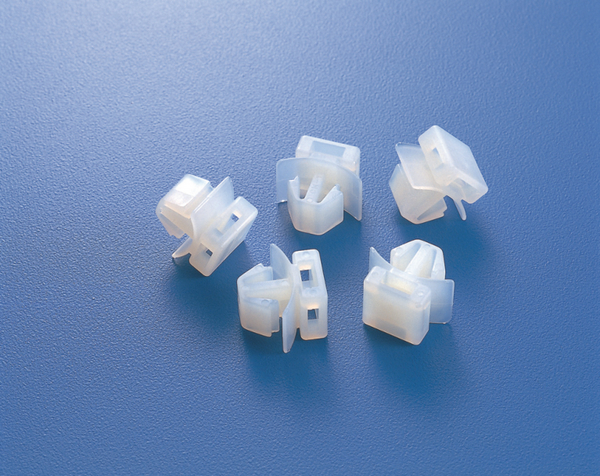

Cable tie mount for hole (round), Wmax=5.5mm, natural, 100pcs.
Art.-No. 151-00573 | CM2-PA66-NA |  Details

    • Just push the mount on the rail groove.
    • Attatched easily just by inserting. Bolt and nuts are not required.
    • No need to open holes and tapping rails.
    • Number of units and parts are reduced, saving labor and costs.
    Add to watchlist
    Downloads Datasheet
    Application Used in production line, automatic warehouse
    Colour Natural (NA)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CM2-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag

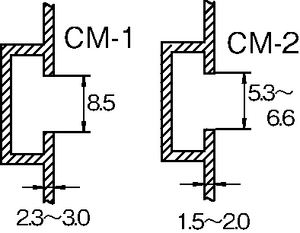

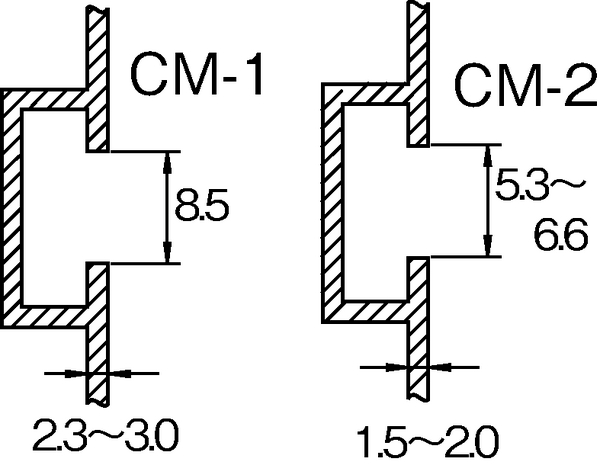

    Product Family CM-1, CM-2
    Product Group Push-mount for Conveyor
    Type CM2

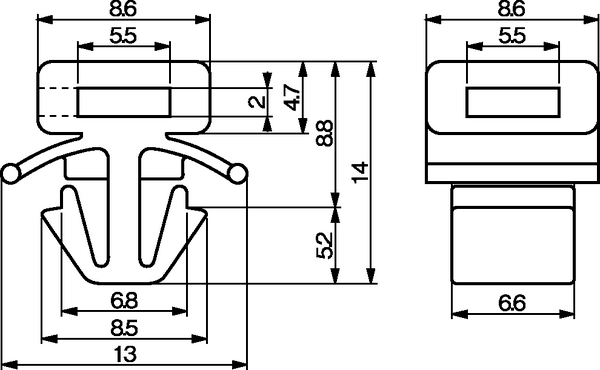

    Height (H) 14.0mm
    Length (L) 8.6mm
    Strap Width max. (G) 5.5mm
    Width (W) 13.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387310900
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
