21/11/2024

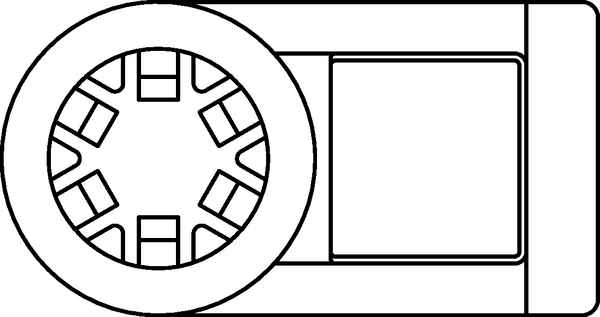

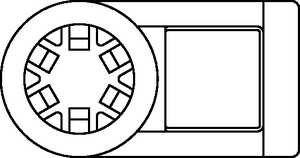

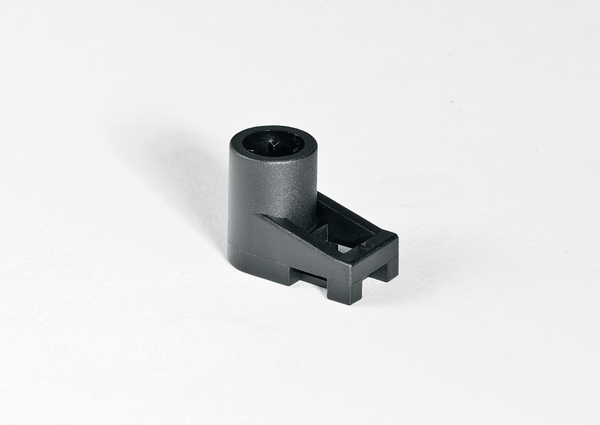

Cable tie mount for stud, Wmax=5mm, ∅5.0 mm, ∅5.0 mm, black, 500pcs.
Art.-No. 151-03301 | CTMS5-PA66-BK |  Details

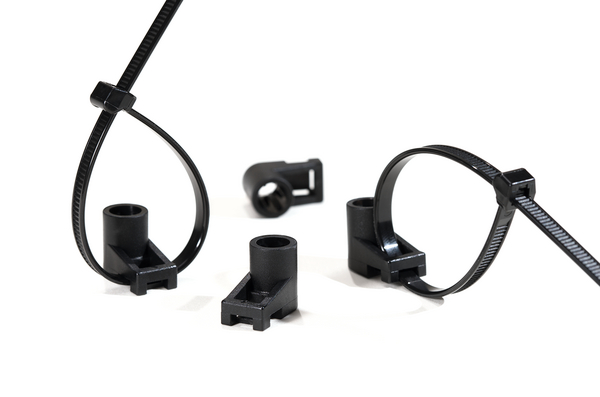

Fixing Element CTMS5 allows bundles to be routed alongside the stud.

    • Ideal for cable ties up to 4.8 mm wide
    • Simply pushed by hand onto an ISO or Fir Tree stud
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application In areas with limited space these mounting bases allow the cable to be slightly offset from the fixing stud, and can be installed in the equipment prior to the cable installation. A major cost saving can be made using these products as they will allow the use of many different sizes of standard cable ties without the need to stock a wide range of specific fixing ties.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CTMS5-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family CT-Series
    Product Group Fixing Elements for Weld Studs
    Short Description Fixing Elements for Weld Studs 19x10 black
    Type CTMS5

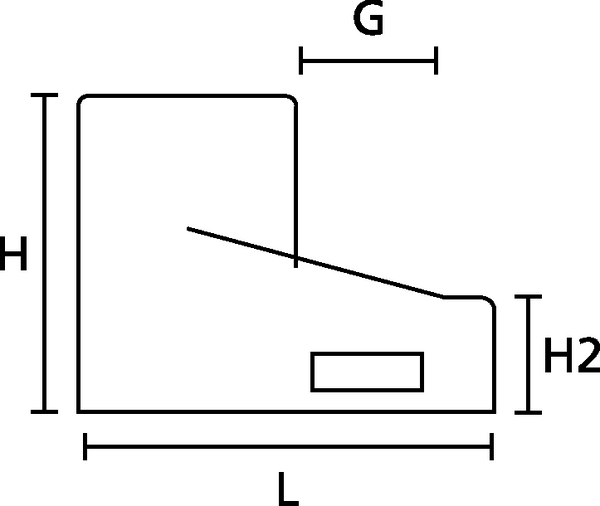

    Height (H) 14.5mm
    Height (H2) 5.3mm
    Length (L) 19.0mm
    Min Stud Length 5.0mm
    Strap Width max. (G) 5mm
    Stud ∅ 5.0 mm
    Weight/Unit 0.001kg

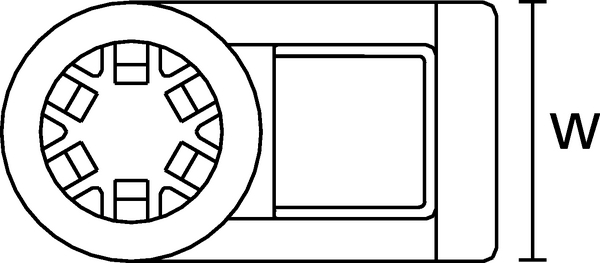

    Width (W) 10.0mm
    for Hole ∅ (FH) 5.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660302824
    Packaging 1 - Height (m) 0.358m
    Packaging 1 - Length (m) 0.592m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04239m³
    Packaging 1 - Weight (kg) 0.550001kg
    Packaging 1 - Width (m) 0.2m
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0498m³
    Packaging 3 - Weight (kg) 9.420016kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 190.56kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
