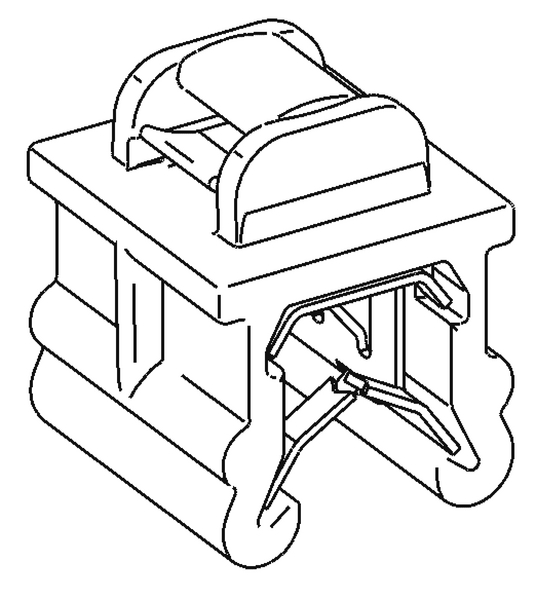

EC20-PA66HIRHS-BK
Art.-No. 151-00596 | EC20-PA66HIRHS-BK |  Details

    • Easy assembly, just clip on per hand
    • For edges of 3 - 6 mm
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist
    Downloads Datasheet
    Application These connector clips are for wires and cable harnesses for example in the automotive and electrical industry. The assembly is done by simply pushing on the plug. They are used wherever no holes can be drilled or there are no other attachment points.
    Colour Black (BK)
    Description NOT to be included in catalogue or sold as seperate parts
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EC20-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type EC20
    Height (H) 14.0mm
    Length (L) 17.8mm
    Weight/Unit 0.002143kg
    for Panel Thickness min - max 3 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026280486
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00292m³
    Packaging 1 - Weight (kg) 1.0715kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 6500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 14.5295kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 156000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 369.708kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
