22/11/2024

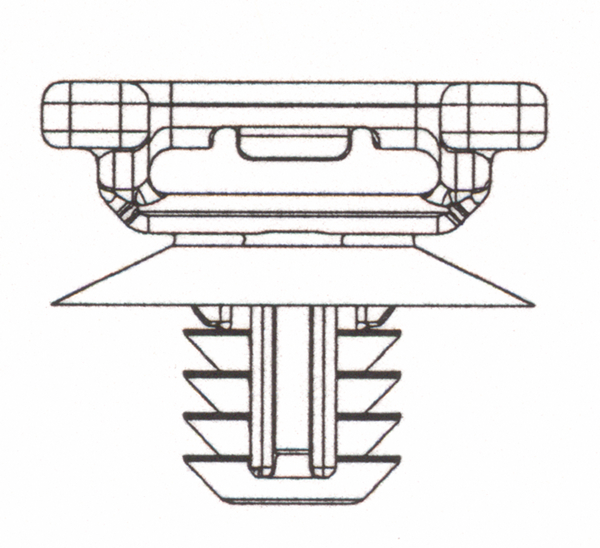

FT9A-PA66HIRHSUV-BK
Art.-No. 151-00515 | FT9A-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION FT9A-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type FT9A
    Bundle Diameter max (metric) 76.2mm
    Bundle ∅ 9.7-76.2mm
    Bundle ∅ min. 9.7mm
    Height (H) 19.1mm
    Length (L) 15.0mm
    Panel Thickness max. 1.0 - 6.5mm
    Radius (R) 15.7mm
    Radius (R) 0.62"
    Weight/Unit 0.002158kg
    Width (W) 22.6mm
    for Hole ∅ (FH) 8.75 - 9.25 mm
    for Panel Thickness min - max 1 - 6.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026333496
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00436m³
    Packaging 1 - Weight (kg) 1.079001kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 3.757003kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.145m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 42000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.099m³
    Packaging 4 - Weight (kg) 126.196kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
