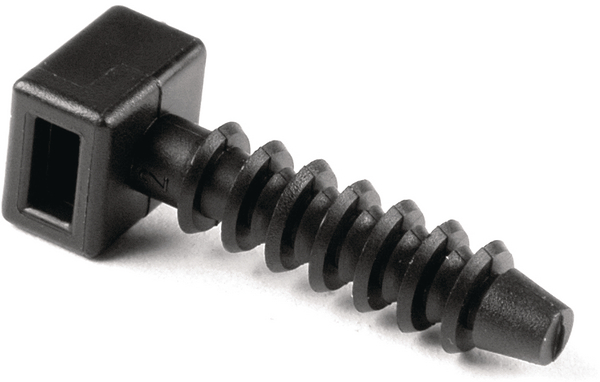

Cable tie mount to close hole/for edge protection, Wmax=4.6mm, T=25.4mm, ∅4.7 mm, black, 10pcs.
Art.-No. 151-29804 | MMB0-PA66STHS-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    For Ties T18 - T50
    Material Polyamide 6.6, super tough, heat stabilized (PA66STHS)
    PART DESCRIPTION MMB0-PA66STHS-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Type MMB0
    Height (H) 8.9mm

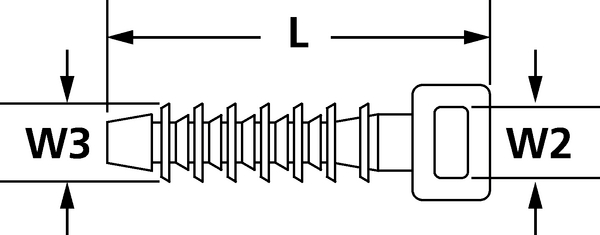

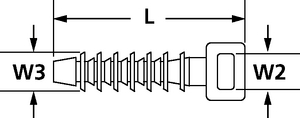

    Length (L) 30.1mm
    Panel Thickness max. 25.4mm
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm

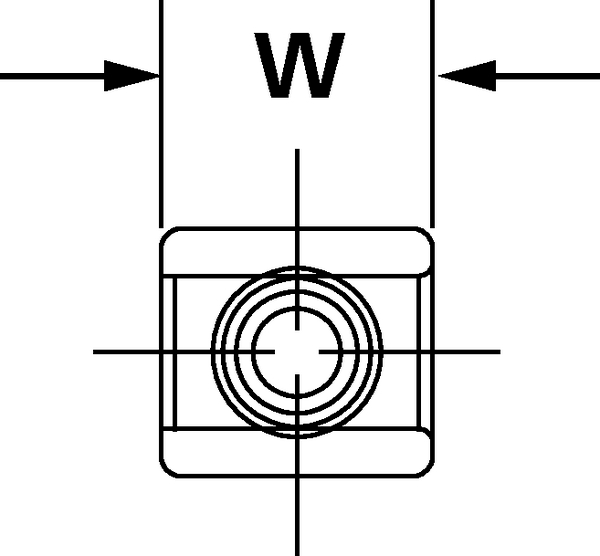

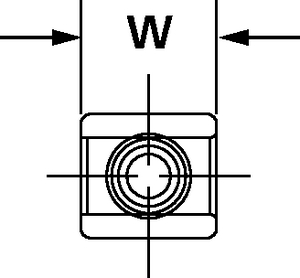

    Width (W) 9.0mm
    Width of Fixing WF (metric) 5.9mm
    for Hole ∅ (FH) 4.7 mm
    for Panel Thickness min - max 25.4 - 25.4 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
