23/12/2024

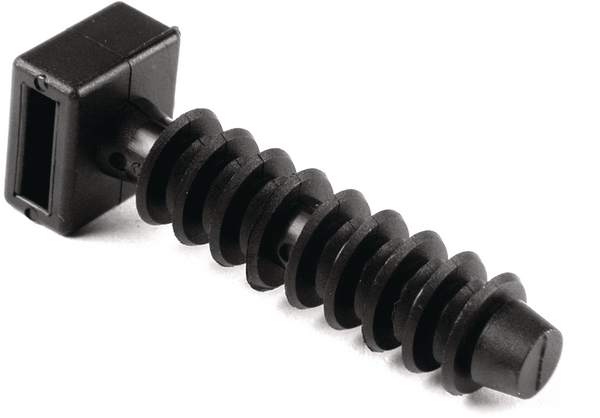

Cable tie mount to close hole/for edge protection, Wmax=4.6mm, T=38.1mm, ∅8.0 mm, black, 100pcs.
Art.-No. 151-00326 | MMB1-PA66STHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Threaded bolt
    For Ties T18 - T50
    Material Polyamide 6.6, super tough, heat stabilized (PA66STHS)
    PART DESCRIPTION MMB1-PA66STHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type MMB1
    Height (H) 12.70mm
    Hole Depth 38.1mm
    Length (L) 43.5mm
    Panel Thickness max. 38.1mm
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm
    Width (W) 12.9mm
    Width (W2) 9.5mm
    Width (W3) 9.2mm
    Width of Fixing WF (metric) 7.8mm
    for Hole ∅ (FH) 8.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726595
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
