Cable tie mount for hole (round), Wmax=5.0mm, T=0.7-2.6mm, ∅6.0 - 7.5 mm, natural, 100pcs.
Art.-No. 151-00574 | PM7-PA66-NA |  Details

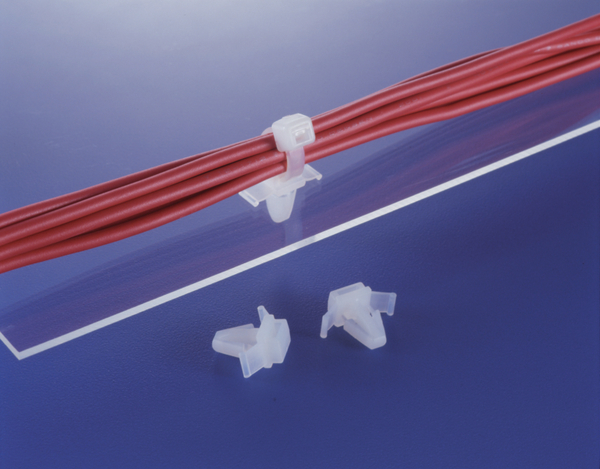

    • Wiring fixture that can be installed stably on the panel surface with the suport of the wings.
    • Can secure the wiring directly above the panel mounting hole.
    Add to watchlist
    Downloads Datasheet
    Application Electrical and electronic equipment, Industrial and machine tools, Construction Machinery, Cable fixing on switchboards
    Colour Natural (NA)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PM7-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family PM Series
    Product Group Push-mount arrowhead type
    Type PM7
    Height (H) 16.6mm
    Length (L) 8.6mm
    Panel Thickness max. 0.7-2.6mm
    Strap Width max. (G) 5.0mm
    Width (W) 18.0mm
    for Hole ∅ (FH) 6.0 - 7.5 mm
    for Panel Thickness min - max 0.7 - 2.6 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387942811
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
