21/11/2024

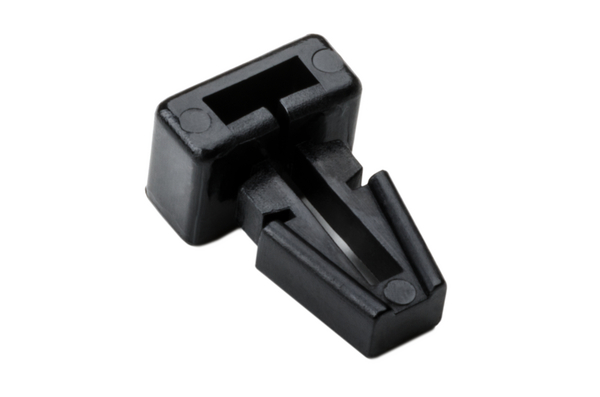

Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ∅6.3 mm, black, 100pcs.
Art.-No. 151-40100 | TM1SF-PA66-BK |  Details

    • Ideal mount for space-saving applications with restricted access
    • Arrowhead for very secure fixing
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.
    Colour Black (BK)
    Fixation Method arrowhead
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TM1SF-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family TM1SF for cable ties width up to 5.0 mm
    Product Group Cable Fixing Cradle
    Type TM1SF
    Height (H) 4.60mm
    Height (H2) 4.60mm
    Length (L) 15.75mm
    Panel Thickness max. 3.4mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.0mm
    Width (W) 10.2mm
    for Hole ∅ (FH) 6.3 mm
    for Panel Thickness min - max 3.4 - 3.4 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026717937
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
