FRBU 11 port A length closure with 6 x Hellapon Small trays and 3A splice bridges
Art.-No. 857-00623 | FRBTB-AXXEA61 |  Details

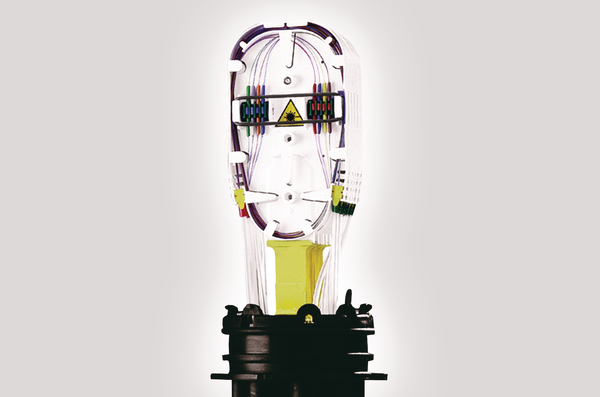

FRBU A-Length 11 Port Closure with 6 Small Hellapon Trays

    • Maximum 72 fibre splice capacity
    • 10 round ports and 1 oval port
    • 6 x Hellapon Small Trays with 3A Splice Bridges
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Colour Black (BK)
    Content FRBU 11 Port Base
    A-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Tray Support Frame
    Anchor Fixing Kit (2)
    6 x Hellapon Small Trays
    Tray Tool
    Transportation Tubing
    Hook and Loop Management Ties
    Cable Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 - 12
    Green Marker 1 – 12
    Cover Type A
    Material Polypropylene (PP)
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FRBTB-AXXEA61
    Pack Cont. 1Set
    Package Content packed in kit
    Port LM, B, R
    Port count 1, 2, 8
    Product Family A Length
    Product Group FRBU 11 Port Closure
    Qty Trays 6
    Short Description FRBU 11 port A length closure with 6 x Hellapon Small trays and 3A splice bridges
    Splice Capacity 72
    Technical Description The FRBU 11 Port A Length closure is supplied with a Polypropylene base. The base configuration of 10 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 6 x Hellapon Small Trays with 3A Splice Bridges giving a maximum of 72 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FRBTB-AXXEA61
    Type of Tray Hellapon Small
    Variant Outdoor Enclosure

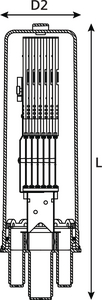

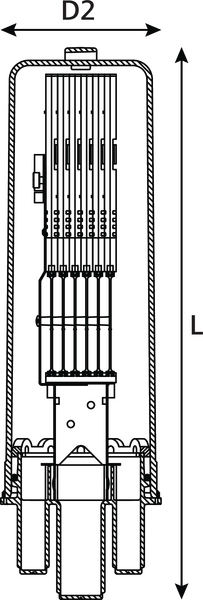

    D1 130mm
    D1 5.1"
    D2 5.1"
    D2 130mm
    Length 435mm
    Country of Origin GB
    GTIN-13 / EAN 5022660112287
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.01238m³
    Packaging 1 - Weight (kg) 1.7kg
    Packaging 1 - Width (m) 0.15m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    UNSPSC Key 43223338
