FRBU 9 Port Closure
Art.-No. 857-01158 | FRBTB-BXBNC25 |  Details

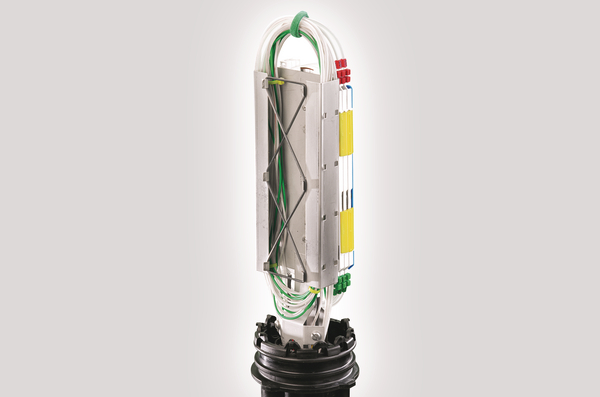

FRBU B-Length 9 Port Closure with 3 Medium Hellapon Trays and basket

    • Maximum 72 fibre splice capacity
    • 8 round ports and 1 oval port
    • Fibre storage basket for loop through applications
    • 3 x Hellapon Medium Side Hinged Trays with Crimp/ANT Splice Bridges
    • Maximum 24 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Colour Black (BK)
    Content FRBU 9 Port Base
    B-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Fibre Storage Basket
    Tray Support Frame
    Anchor Fixing Kit (2)
    3 x Hellapon Medium Trays Side Hinged with Crimp/ANT Splice Bridges
    Tray Tool
    Transportation Tubing
    Hook and Loop Management Ties
    Cable Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 - 12
    Green Marker 1 – 12
    Cover Type B
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FRBTB-BXBNC25
    Package Content packed in kit
    Port L, B, R
    Port count 1, 4, 4
    Product Family B Length
    Product Group FRBU 9 Port Closure
    Qty Trays 3
    Splice Capacity 72
    Technical Description The FRBU 9 Port B Length closure is supplied with a Polypropylene base. The base configuration of 8 round ports and 1 oval port covers a cable diameter range of 1.7 – 20.0mm when using Cablelok mechanical seals and 6.0 – 24.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 3 x Hellapon Medium Side Hinged Trays and basket fitted with crimp/ANT splice bridges giving a maximum of 72 fibre splices. The fibre basket provides storage space for the storage of fibre loops within the closure. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FRBTB-BXBNC25
    Type of Tray Hellapon Medium
    Variant Outdoor Enclosure

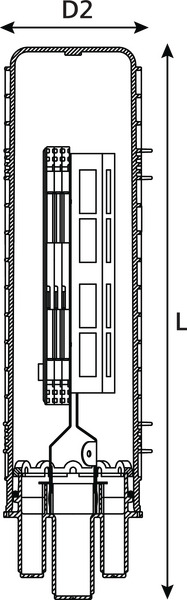

    D1 130mm
    D2 130mm
    Length 505mm
    Country of Origin GB
    GTIN-13 / EAN 5022660149221
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.59m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.0151m³
    Packaging 1 - Weight (kg) 2.3kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
