Cast resin, Polybutadiene (PBD) yellow, 1640ml
Art.-No. 435-00839
| GEL-KH67-SF-N-PBD-YE
|
Details

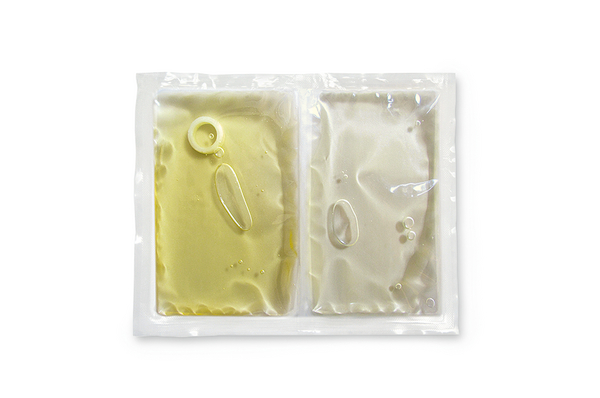

- A practical, transparent two-chamber pouch
- Safe-Filling system (SF)
- Excellent flow properties
- Soft elastic, vibration absorbing, removable
- Outstanding insulating properties
- Cures without developing heat
- Saltwater resistant
- Non-toxic, free of silicone and isocyanate
- SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
- Halogen free
More products in this product group:
| Application | RELICON KH 67 is a transparent, removable, saltwater resistant, flexible two-component gel based on hydrocarbon resins. It is especially suitable for use with junction boxes in low-voltage networks, located in a humid area or in the ground. After curing, RELICON KH 67 is characterised by its excellent resistance to moisture and very good insulating properties as well as good chemical resistance. Application: Electrical insulation and moisture protection in the low-voltage networks. Particularly suitable for filling of cable junction boxes. |
| Colour | Yellow (YE) |
| Density | 0.95 g/cm³, 20 °C (DIN EN ISO 2811-2) |
| Key product features | vibration absorbing |
| Material | Polybutadiene (PBD) |
| PART DESCRIPTION | GEL-KH67-SF-N-PBD-YE |
| Pack Cont. | 1640ml |
| Package Content packed in | bag |
| Pot Life | 40 min. 23°C |
| Product Family | RELICON KH 67 |
| Product Group | Two-component gel |
| Removable | Yes |
| Type | GEL-KH67-SF-N |
| Viscosity | 3000 mPa*s, 5 °C (EN ISO 2555), 2000 mPa*s, 23 °C (EN ISO 2555) |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39119099 |
| GTIN-13 / EAN | 4031026656632 |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Weight (kg) | 1.7kg |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 2.3kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 76.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
