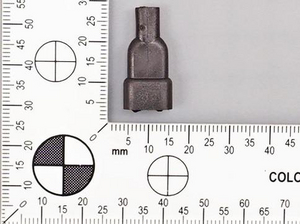

Cable grommet, black, 2000pcs.
Art.-No. 631-08200 | HV4820-PVC-BK |  Details

Push-on caps and elbow grommets in various dimensions.

    • Protects effectively against spraying water
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist
    Downloads Datasheet
    Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.

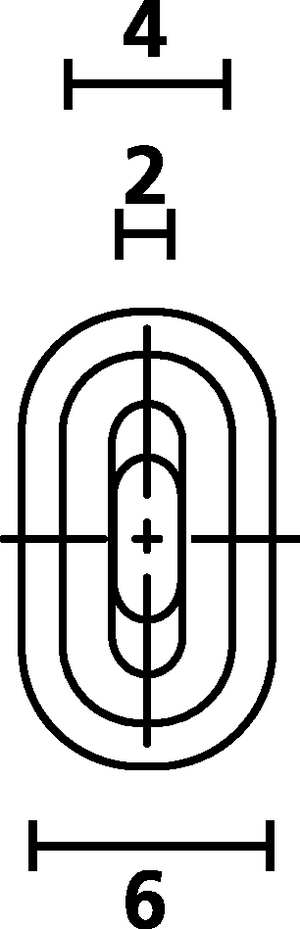

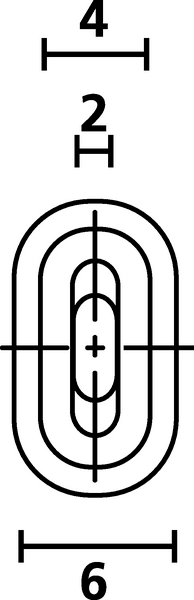

    Cable ∅ max 4.0mm
    Cable ∅ min 2.0mm
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HV4820-PVC-BK

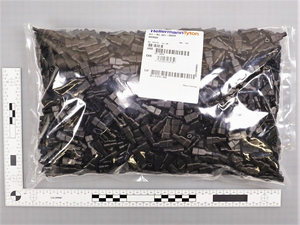

    Pack Cont. 2000pcs.
    Package Content packed in pcs.
    Product Family HV4820
    Product Group For blade receptables and terminals
    Short Description Push-on Caps black
    Type HV4820
    Variant Open
    Diameter (D) 10.0mm
    Length (L) 25.0mm
    Length (L2) 14.0mm
    Length (L3) 6.0mm
    Outside Ø (OD) 12.0mm
    Outside ∅ (OD2) 6.0mm
    Shore Hardness A 70±5
    Weight/Unit 0.000678kg
    ∅ (D2) 4.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026185750
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0049m³
    Packaging 1 - Weight (kg) 1.383kg
    Packaging 1 - Width (m) 0.4m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
