22/12/2024

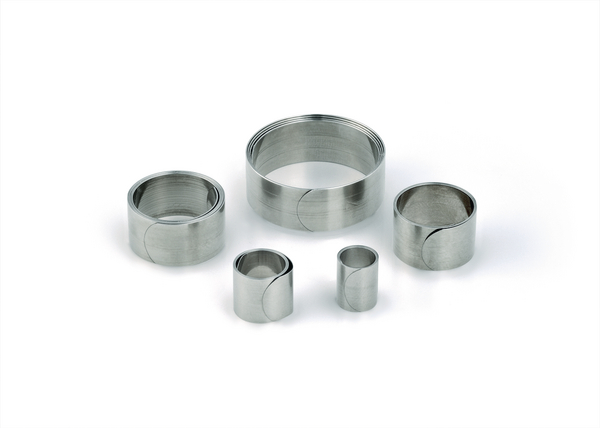

Constant Force Spring Adaptor
Art.-No. 425-00008 | HE-300-4-SS-SR |  Details

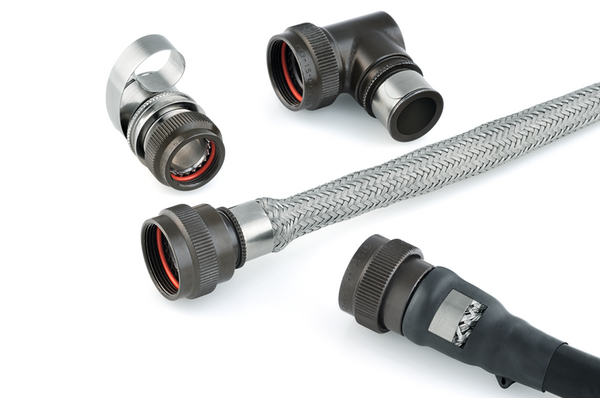

    • Unique re-enterable termination system for connecting a cable shielding braid to a circular connector
    • When used in conjunction with our Heatshrink moulded shape, a sealed environmental termination system is achieved
    • Termination can be re-entered when required
    • Possible to effect repairs to connector pins/sockets without the need to discard any part of the shielding system
    • Excellent resistance to vibration and shock
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Predominantly used in the Aerospace, Defence and Professional Electronics sectors.
    Application Method Simply wrap over substrate to secure in position
    Colour Silver (SR)
    Material Stainless Steel (SS)
    PART DESCRIPTION HE-300-4-SS-SR
    Pack Cont. 100pcs.
    Package Content packed in pack
    Product Family Zetalok
    Product Group Constant Force Spring Adaptor
    Type HE-300-4
    Inner Diameter D (Imperial) .73"

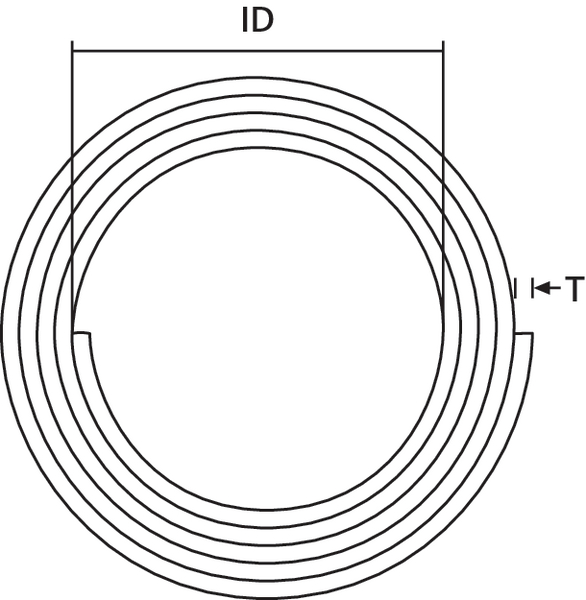

    Inside Ø (ID) 18.46mm
    Length (L) 260.3mm
    Thickness (T) 0.2540mm

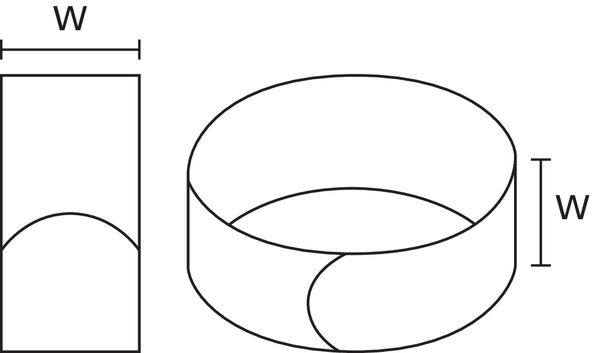

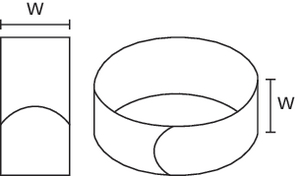

    Width (W) 6.35mm
    Hazardous Goods No
    Country of Origin GB
    Customs Number 73209090
    GTIN-13 / EAN 5022660488900
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    UNSPSC Key 39121721
    Show all
