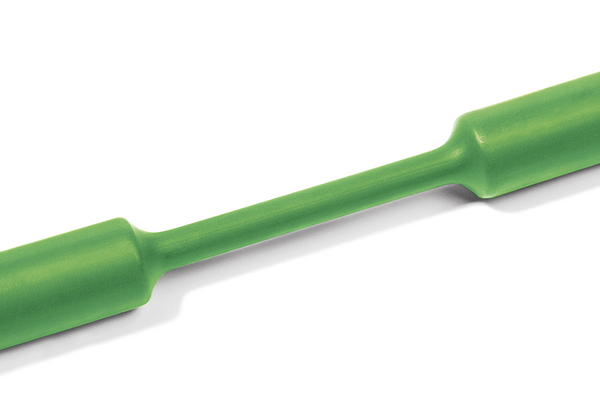

Heat shrinkable tubing 2:1 - flexible and coloured
Art.-No. 305-01605
| HFT-A-1.6/0.8-PO-X-GN
|
Details
- Flexible heat shrink tubing
- Fast shrinking, easy handling, good mechanical strength
- Wide range of colours
- Internal diameters up to 102 mm (4 inches)
- UL-224 ,CSA listed and VG approved
More products in this product group:
| Application | This high performance thin wall tubing is used extensively for electrical and mechanical protection. It is also well proven for sleeve marking to identify wiring circuits. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at low Temperature test method | IEC 60684-2 |
| Colour | Green (GN) |
| Heat Shock Elongation | 390% |
| Heat Shock Tensile Strength | 13MPa |
| Heat Shock Test | 4h/200°C |
| Heat shock test test method | IEC 60684-2 |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | HFT-A-1.6/0.8-PO-X-GN |
| Pack Cont. | 100m |
| Package Content packed in | metre |
| Printable | No |
| Product Family | HFT-A - self extinguishing |
| Product Group | Heat shrinkable tubing 2:1 - flexible and coloured |
| Shrink Ratio | 2:1 |
| Size | 1/16" |
| Type | HFT-A-1.6/0.8 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| CSA Certified | Yes |
| Dielectric Strength | 21kV/mm |
| Dielectric Strength test method | IEC 60684-2 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 400% |
| Elongation at break test method | IEC 60684-2 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | B (VDE 0530) |
| Min. Shrink Temperature - °C | +135 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | CLASS 903201, UL 224 |
| Specifications |
|
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | IEC 60684-2 |
| UL Listed (US and Canada) | Yes |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | IEC 60684-2 |
|
|
|
| Country of Origin | NL |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026139692 |
| Packaging 1 - Height (m) | 0.108m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.01728m³ |
| Packaging 1 - Weight (kg) | 0.893001kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 2 - Type | carton |
| Packaging 3 - Height (m) | 0.26m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0416m³ |
| Packaging 3 - Weight (kg) | 1.393kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.184m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.137m³ |
| Packaging 4 - Weight (kg) | 54.432kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 400.0m |
