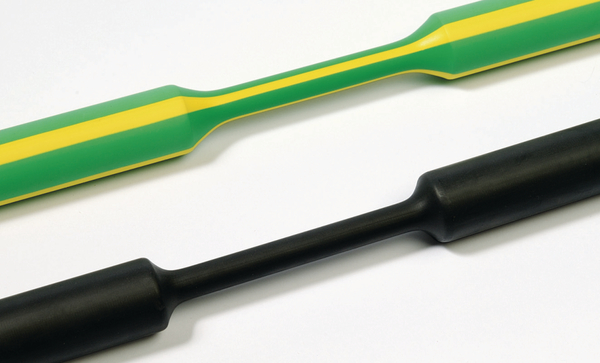

Heat shrinkable tubing up to 3:1 - 1 m lengths
Art.-No. 319-40000 | TREDUX Promo Pack-PO-X-BK Details

  • Thin wall, flexible, cross-linked polyolefin tubing
  • 1m shrink tubing lengths delivered in handy display carton
  • 9 sizes from 1.5 mm to 101.6 mm
  • All tubings can be sold in single 1 meter length or entire box
Application TREDUX thin wall heat shrink tubing is used for general electrical insulation and mechanical protection of cables and wires.
Behaviour at Heat Shock not fluid, not dripping, not cracking
Behaviour at low Temperature test method UL 224
Colour Black (BK)
Elongation At Heat Aging 400%
Heat Aging Test 168h/175°C
Heat Shock Test 4h/250°C
Heat shock test test method UL 224
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 11MPa
PART DESCRIPTION TREDUX Promo Pack-PO-X-BK
Pack Cont. 1pc.
Package Content packed in pack
Printable No
Product Family TREDUX - thin wall
Product Group Heat shrinkable tubing up to 3:1 - 1 m lengths
Shrink Ratio 2:1 from 38.1/19.1 mm to 101.6/50.8 mm, 3:1 from 1.5/0.5 mm to 24/8 mm
Type TREDUX Promo Pack
Variant Thin-Wall
Voltage range 600 V
With inner glue (Yes/No) No
Length (L) 1.0m
Longitudinal Change After Shrinkage +/-5%
Copper corrosion tested according to UL 224
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 60243
Elongation at break 6
Elongation at break test method ASTM D2671
Flammability UL 224 VW-1
Insulation Class B (VDE 0530)
Min. Shrink Temperature - °C +70 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 14MPa
Test Method Tensile Strength ASTM D2671
UL Listed (US and Canada) No
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
Volume Resistance test method IEC 93
Water Absorption 0.2%
Country of Origin DE
GTIN-13 / EAN 4031026228532
Packaging 1 - Weight (kg) 0.41kg
Packaging 4 - Length (m) 1.20m
Packaging 4 - Qty 16
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 26.0kg
Packaging 4 - Width (m) 0.80m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
