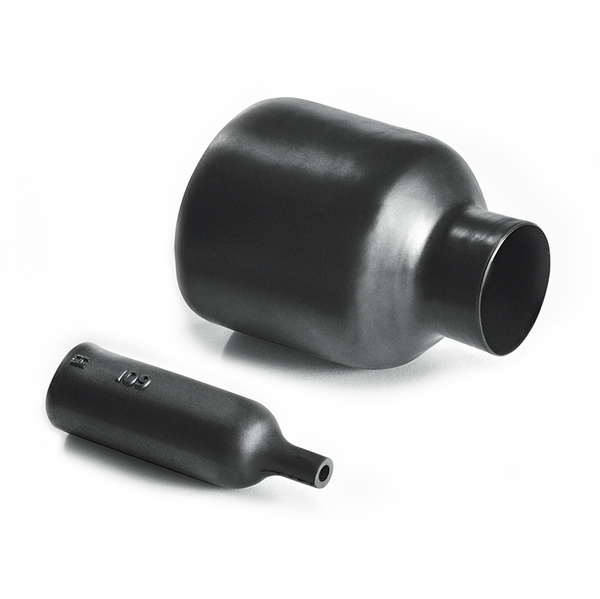

Bottle Shapes
Art.-No. 410-34002 | 1034-42-H-PO-X-BK |  Details

100 series supplied / fully recovered.

    • Strain relief for connector cable
    • Easy re-entry for repair when combined with hot melt adhesive
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1034-42-H-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 100 Series
    Product Group Bottle Shapes
    Type 1034-42-H
    Flexibility Flexible
    HW ± 20 % 2.4mm
    JW ± 20 % 1.2mm
    P ± 10 % 72mm
    R max. 36mm
    S nom. 25mm
    T ± 20 % 1mm
    ∅H max. b 17mm
    ∅H min. a 25mm
    ∅J max. b 6.5mm
    ∅J min. a 19mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Halogen-free Yes
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 10MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660402869
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00042m³
    Packaging 1 - Weight (kg) 0.006kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
