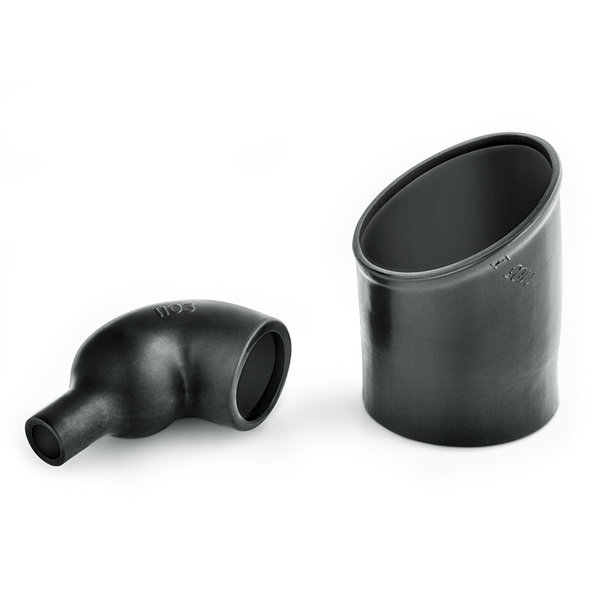

Right-Angle Shapes, MIL style
Art.-No. 411-03019 | 1103-4-B7-PO-X-BK |  Details

1108-4 supplied / fully recovered.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1103-4-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1103-4-B7
    Variant For plug
    Angle 90
    Flexibility semi rigid
    HW ± 20 % 1.8mm
    JW ± 30 % 1.8mm
    M nom. 22.9mm
    P ± 10 % 43.2mm
    R ± 10 % 35.6mm
    S nom. 12.7mm
    T ± 20 % 1mm
    V max. 3.3mm
    Weight/Unit 0.007kg
    ∅H max. b 22.4mm
    ∅H min. a 36mm
    ∅J max. b 8.4mm
    ∅J min. a 36mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-661-3333, 5970-01-034-7135
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660407857
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00077m³
    Packaging 1 - Weight (kg) 0.007kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
