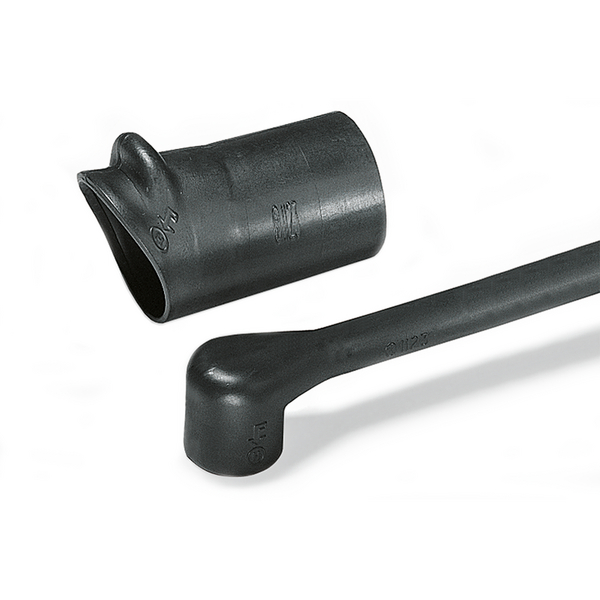

Right-Angle Shapes, VG style/MIL style
Art.-No. 411-28002 | 1128-4-G-PO-X-BK |  Details

1123-1-G supplied / fully recovered.

    • Lightweight, low profile, compact strain relief and mechanical protection
    • Typically used on airborne harnesses
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1128-4-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib, low profile
    Product Group Right-Angle Shapes, VG style/MIL style
    Type 1128-4-G
    Variant For plug
    Angle 90
    HW ± 20 % 2.5mm
    JW ± 30 % 1.4mm
    P ± 10 % 227.3mm
    R ± 10 % 33.3mm
    S nom. 168.3mm
    T ± 10 % 2mm
    T ± 20 % 2.0mm
    V max. 303mm
    V ± 10 % 3.3mm
    Weight/Unit 0.035kg
    ∅H max. b 47mm
    ∅H min. a 62.7mm
    ∅J max. b 18mm
    ∅J min. a 62.7mm
    Flammability ASTM D635
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660413315
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0016m³
    Packaging 1 - Weight (kg) 0.035001kg
    Packaging 1 - Width (m) 0.200m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
