Right-Angle Shapes, VG style
Art.-No. 411-54012 | 1154-4-H-PO-X-BK |  Details

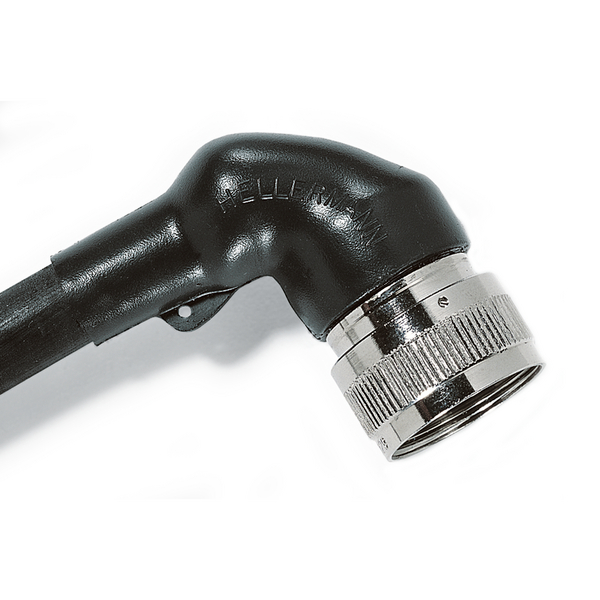

1152-4-G recovered onto a connector.

    • Used in conjunction with a circular grooved adaptor
    • Provides strain relief and an environmental seal
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1154-4-H-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, VG style
    Type 1154-4-H
    Variant For plug
    Angle 90
    Flexibility Flexible
    HW ± 20 % 1.5mm
    JW ± 30 % 0.8mm
    M nom. 19mm
    P ± 20% 41.0mm
    R ± 10 % 27mm
    S nom. 12mm
    V max. 1.0mm
    V ± 20% 1mm
    Weight/Unit 0.004kg
    ∅H max. b 14.5mm
    ∅H min. a 30mm
    ∅J max. b 6mm
    ∅J min. a 30mm
    Designation as per VG-Norm VG 95343 T19 A 002 A
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Halogen-free Yes
    Limited Fire Hazard No
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-780-0450
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 10MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660415449
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00036m³
    Packaging 1 - Weight (kg) 0.004kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
