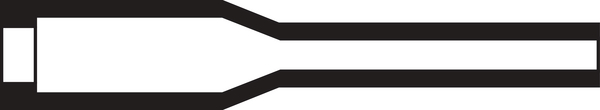

Bottle Shapes
Art.-No. 401-20036 | 120-42-G-PO-X-BK |  Details

120-42-G supplied / fully recovered.

    • Low profile and lightweight style
    • Typically used on airbourne harnesses
    • Rib locates on circular backshell
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 120-42-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 120 Series, with rib
    Product Group Bottle Shapes
    Type 120-42-G
    Flexibility semi rigid
    HW ± 20 % 1.3mm
    JW ± 20 % 1.3mm
    P ± 10 % 60.9mm
    R nom. 24mm
    R ± 10 % 24mm
    S nom. 32mm
    T ± 10 % 1mm
    T ± 20 % 1mm
    V max. 3mm
    V ± 10 % 3mm
    W ± 20 % 1.3mm
    Weight/Unit 0.002kg
    ∅H max. b 7mm
    ∅H min. a 16.5mm
    ∅J max. b 3mm
    ∅J min. a 10.2mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660419263
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.130m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00026m³
    Packaging 1 - Weight (kg) 0.002001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
