19/11/2024

T-Shapes, VG style/MIL style
Art.-No. 412-02016 | 1202-7-L-FPMX-BK |  Details

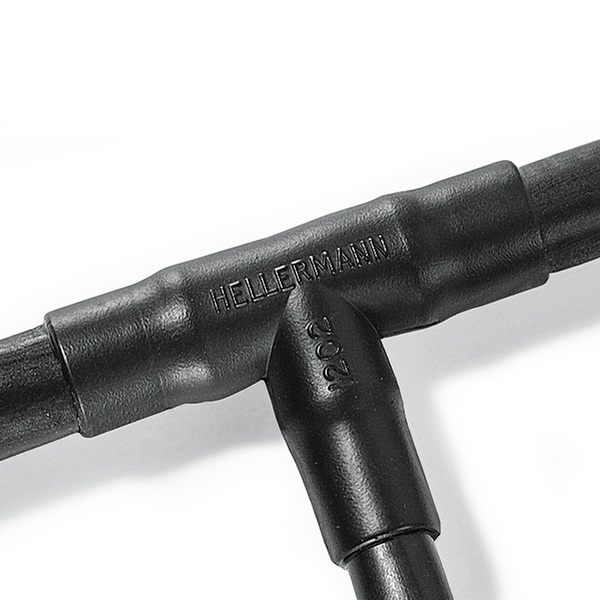

1202-1-G recovered onto a cable harness.

    • Strain relief, sealing and mechanical protection on cable harnesses
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 1202-7-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1202-7-L
    Variant For 2-core cables
    HW ± 30 % 1.5mm
    JW ± 30 % 1.5mm
    KW ± 20 % 1.5mm
    M nom. 10mm
    P ± 10 % 59mm
    R ± 10 % 29.5mm
    Weight/Unit 0.006kg
    ∅H max. b 7mm
    ∅H min. a 14mm
    ∅J max. b 7mm
    ∅J min. a 14mm
    ∅K max. b 10mm
    ∅K min. a 14mm
    Nato number 5970-01-449-4361
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660418556
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.006001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
