13/11/2024

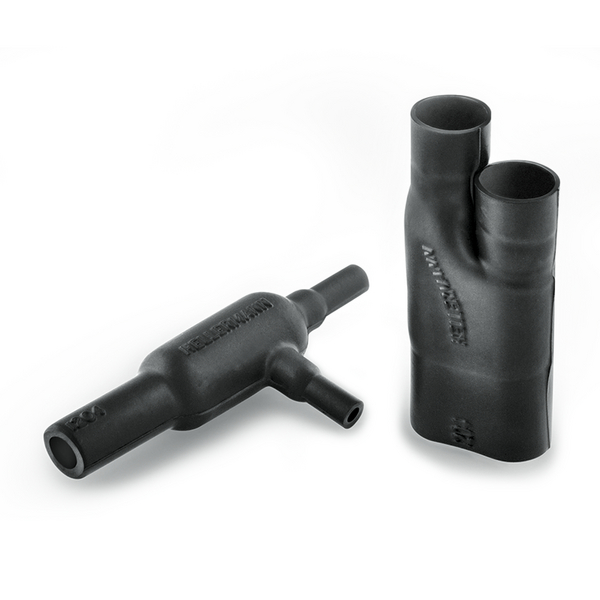

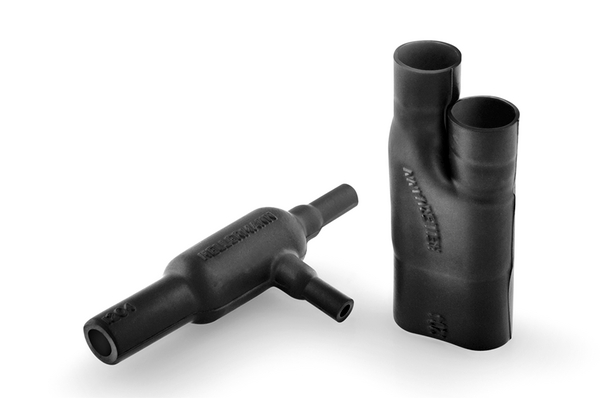

T-Shapes, VG style
Art.-No. 412-04008 | 1204-1-J-PO-X-BK |  Details

1204-1 supplied / fully recovered.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1204-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series, Offset
    Product Group T-Shapes, VG style
    Type 1204-1-J
    Variant For 2-core cables
    Flexibility semi rigid

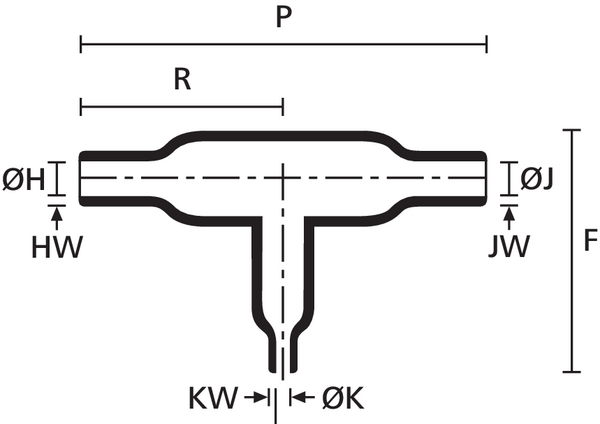

    HW ± 20 % 1.5mm
    JW ± 20 % 1mm
    KW ± 20 % 1mm
    M nom. 27mm
    P ± 10 % 56mm
    R ± 10 % 33mm
    Weight/Unit 0.003kg

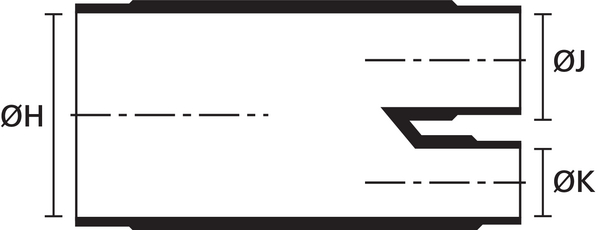

    ∅H max. b 7.5mm
    ∅H min. a 13mm
    ∅J max. b 4mm
    ∅J min. a 6.5mm
    ∅K max. b 4mm
    ∅K min. a 6.5mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-325-1780
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660419201
    Packaging 1 - Height (m) 0.001m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00002m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
