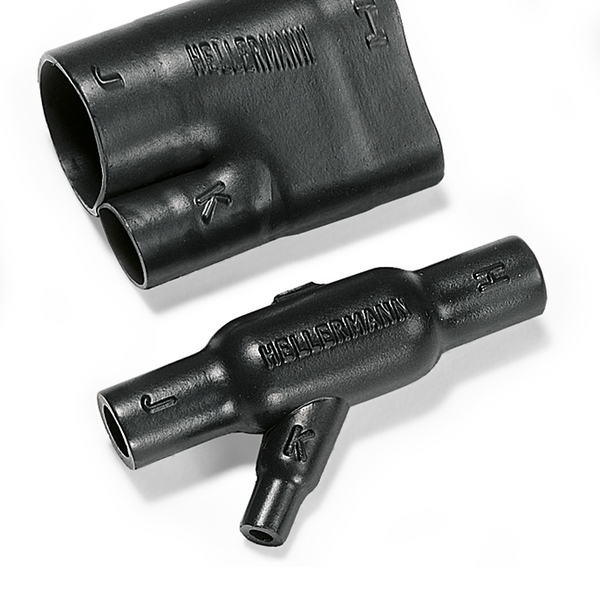

Angled T-Shapes, VG style
Art.-No. 413-07003 | 1307-1-G-PO-X-BK Details

  • Strain relief, sealing and mechanical protection on cable harnesses
  • Branching part 30° & 45° Y-joint
  • Mechanical strain relief for cable harnesses
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1307-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 1300 Series, 30° & 45° angle
Product Group Angled T-Shapes, VG style
Type 1307-1-G
Variant For 2-core cables
Angle 45
Flexibility semi rigid
HW ± 30 % 2.5mm
JW ± 30 % 1.5mm
KW ± 20 % 1.5mm
P ± 10 % 90mm
R nom. 42mm
R ± 10 % 42mm
S nom. 43mm
S ± 10 % 43mm
Weight/Unit 0.017kg
∅H max. b 12.5mm
∅H min. a 27mm
∅J max. b 6mm
∅J min. a 13mm
∅J/K max. b 6mm
∅J/K min. a 13mm
∅K max. b 6mm
∅K min. a 13mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-305-9468
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
