26/12/2024

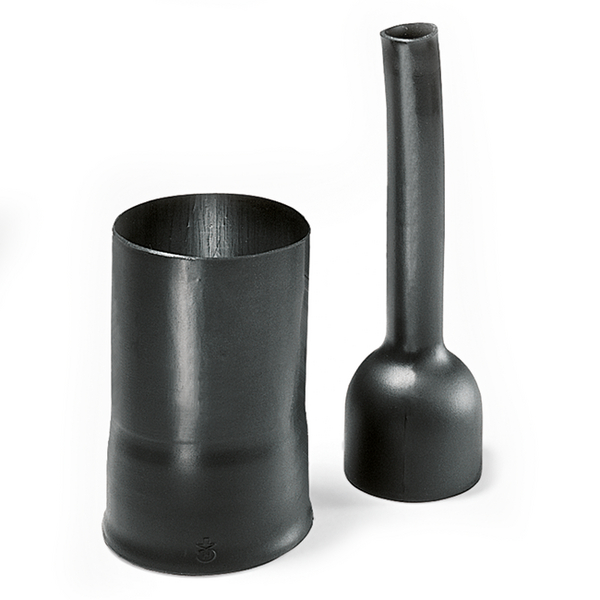

Long Outlet Shape, VG style
Art.-No. 401-36021 | 136-1-G-PO-X-BK |  Details

135-1 supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 136-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 136-1-G
    Variant For plug
    Flexibility Flexible
    HW ± 20 % 2.5mm
    JW ± 30 % 1.4mm
    P ± 10 % 121mm
    R nom. 16mm
    S nom. 71mm
    T ± 20 % 2mm
    V max. 3.3mm
    V ± 10 % 3mm
    Weight/Unit 0.050kg
    ∅H max. b 47mm
    ∅H min. a 62.5mm
    ∅J max. b 18mm
    ∅J min. a 62.5mm
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-316-1181
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660427367
    Packaging 1 - Height (m) 0.070m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00224m³
    Packaging 1 - Weight (kg) 0.050001kg
    Packaging 1 - Width (m) 0.160m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
