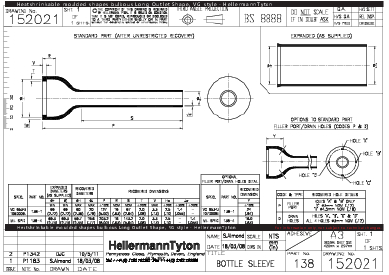

Long Outlet Shape, VG style
Art.-No. 401-38006 | 138-1-G-PO-X-BK |  Details

135-1 supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 138-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 138-1-G
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 2.5mm
    JW ± 20 % 1.4mm
    JW ± 30 % 1.4mm
    P ± 10 % 127mm
    R nom. 16mm
    R ± 10 % 16mm
    S nom. 67mm
    T ± 10 % 2mm
    T ± 20 % 2mm
    V max. 3.3mm
    ∅H max. b 60mm
    ∅H min. a 69mm
    ∅J max. b 20mm
    ∅J min. a 69mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
