Connector Cover for Min-D Series
Art.-No. 415-07005 | 1507-1-G-PO-X-BK |  Details

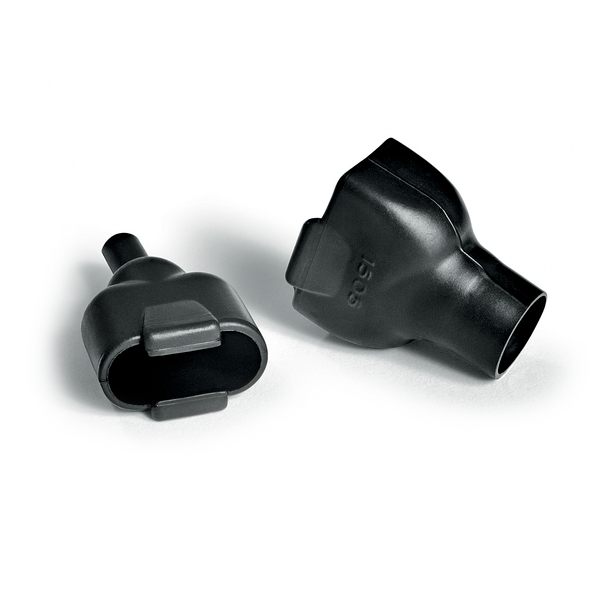

1505-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection for Min-D series connectors
    • Unique design allows perfect orientation on installation
    • Can be supplied with or without lips
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1507-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1500 Series, with top entry
    Product Group Connector Cover for Min-D Series
    Type 1507-1-G
    Flexibility semi rigid
    P ± 10 % 45mm
    R ± 10 % 25.4mm
    W ± 20 % 1.0mm
    Weight/Unit 0.005kg
    ∅H max. b 42.2mm
    ∅H min. a 42.1mm
    ∅J max. b 10.7mm
    ∅J min. a 10.7mm
    ∅K max. b 8.1mm
    ∅K min. a 13.9mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-171-9534
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660429972
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.005001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
