Bottle Shapes, VG style
Art.-No. 401-52001 | 152-41-B7-PO-X-BK Details

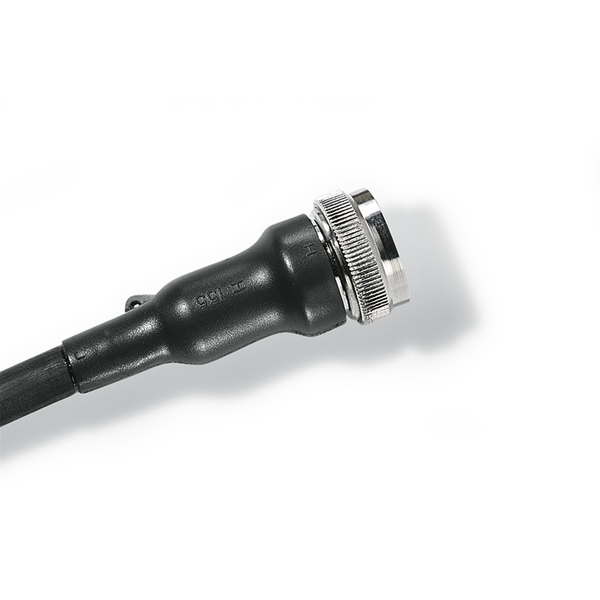

  • Straight plug-and-socket connector terminal casing
  • Protects against environmental stresses for circular plug connectors
  • Inside lip for reinforced stress relief
  • Special 199-4-G fitting for audio plugs has external ribs for improved grip
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 152-41-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Shrink Ratio 4:1
Type 152-41-B7
Variant For plug
Flexibility semi rigid
HW ± 20 % 1.6mm
JW ± 20 % 0.5mm
JW ± 30 % 1mm
P ± 10 % 26.0mm
R nom. 9mm
R ± 10 % 9mm
S nom. 10mm
T ± 20 % 1mm
V max. 3.3mm
V ± 10 % 3mm
Weight/Unit 0.002kg
∅H max. b 10.5mm
∅H min. a 24mm
∅J max. b 6mm
∅J min. a 24mm
Dielectric Strength 16kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Nato number 5970-99-646-0052, 5970-01-074-1609
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Specifications DAN218, MIL-I-81765/1 Type 1
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660696435
