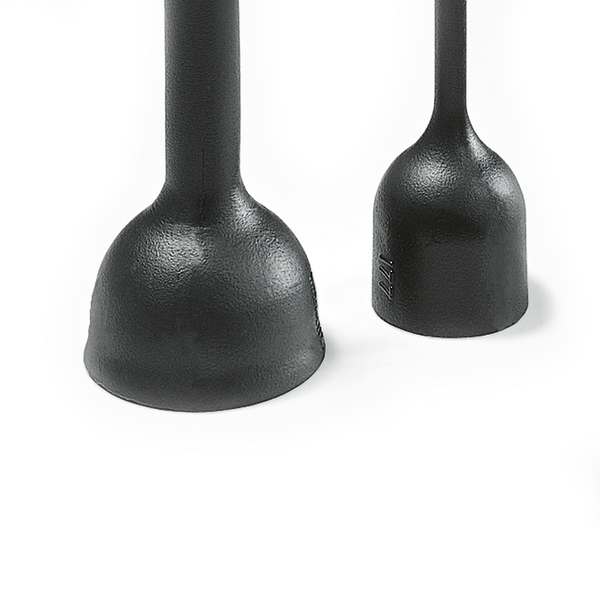

Bottle Shapes, VG style
Art.-No. 401-76023 | 176-50-L-FPMX-BK Details

  • Cable strain relief for partially loaded connectors
  • Small cable diameters
  • Use with our W24 adhesive for excellent chemical resistance
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION 176-50-L-FPMX-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 170 Series, with rib
Product Group Bottle Shapes, VG style
Type 176-50-L
Variant For plug
Flexibility semi rigid
HW ± 20 % 1.5mm
JW ± 30 % 1.1mm
P ± 10 % 60mm
R nom. 12mm
S nom. 38mm
T ± 20 % 1mm
V max. 3.3mm
Weight/Unit 0.002kg
∅H max. b 13mm
∅H min. a 19mm
∅J max. b 2mm
∅J min. a 4.2mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-01-140-8258, 5970-01-179-3744
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660439568
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00074
Packaging 1 - Weight (kg) 0.002kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
