Angle Shapes
Art.-No. 418-05002 | 1805-4-B7-PO-X-BK |  Details

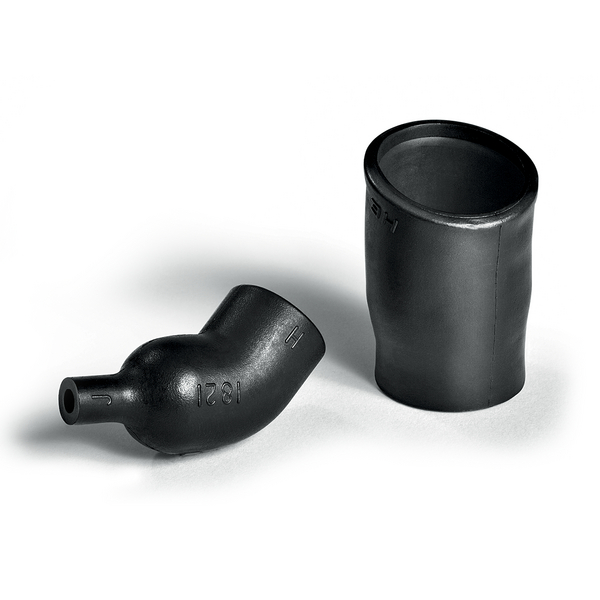

1821-42 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1805-4-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
    Product Group Angle Shapes
    Type 1805-4-B7
    Angle 45
    Flexibility semi rigid
    HW ± 20 % 1.5mm
    JW ± 20 % 1.5mm
    P ± 10 % 28mm
    R nom. 11.0mm
    R ± 10 % 11mm
    S nom. 3.0mm
    S ± 10 % 3mm
    T ± 10 % 1mm
    ∅H max. b 18.8mm
    ∅H min. a 40mm
    ∅J max. b 7mm
    ∅J min. a 40mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5340-99-020-6935
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660441226
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
