Angle Shapes
Art.-No. 418-37001 | 1837-4-G-PO-X-BK |  Details

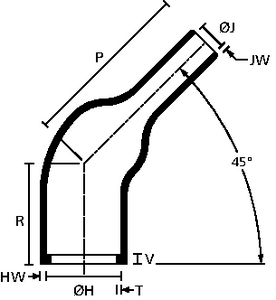

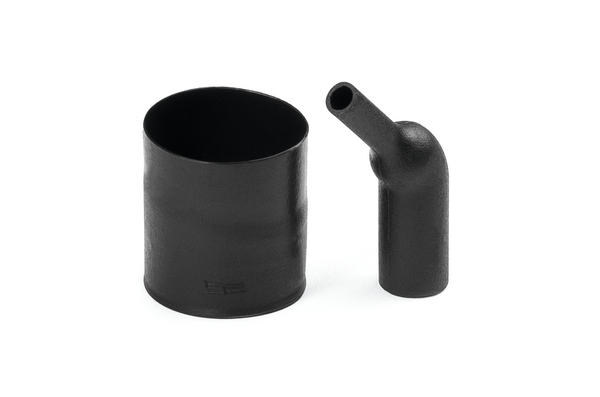

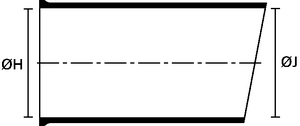

1837-4 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1837-4-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1800 Series, with rib, 45°angle
    Product Group Angle Shapes
    Type 1837-4-G
    Flexibility semi rigid

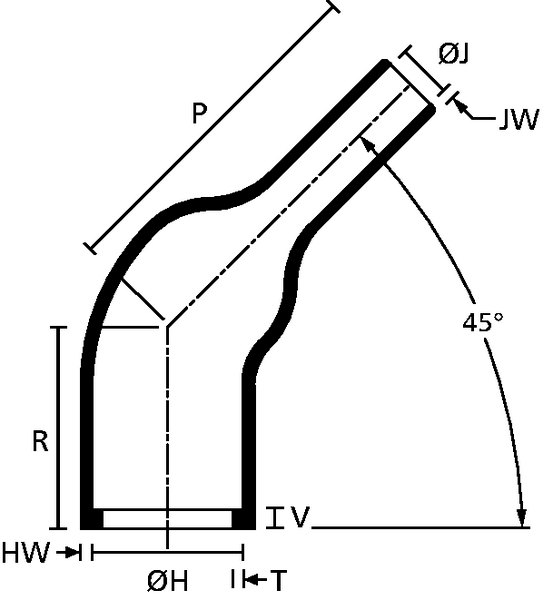

    HW ± 20 % 1.0mm
    JW ± 30 % 0.6mm
    P ± 10 % 29.9mm
    R nom. 19.0mm
    T ± 20 % 0.6mm
    V max. 1.5mm

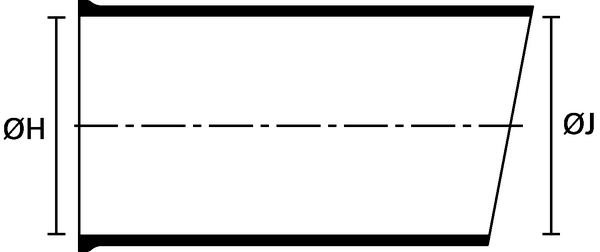

    ∅H max. b 13.9mm
    ∅H min. a 30.0mm
    ∅J max. b 5.8mm
    ∅J min. a 30.0mm
    Min. Shrink Temperature - °C +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660719905
    ETIM 7.0 Key EC000218
    ETIM 8.0 Key EC000218
    ETIM 9.0 Key EC000218
    UNSPSC Key 39121721
