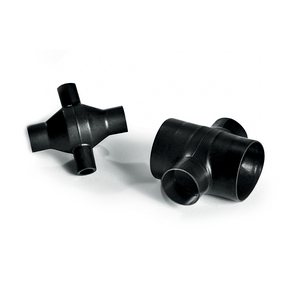

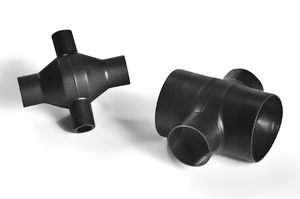

Right Angle Cross Shapes
Art.-No. 420-03003 | 2003-1-JW8-PO-X-BK |  Details

2003-1 supplied / fully recovered.

    • Allows wires to be routed in four 90° directions
    • Provides strain relief and mechanical protection
    • Environmental sealing can be achieved when used in conjunction with one of our extensive range of adhesives
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 2003-1-JW8-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 2000 Series
    Product Group Right Angle Cross Shapes
    Type 2003-1-JW8
    Flexibility Flexible
    P ± 10 % 38.1mm
    R ± 10 % 38.1mm
    S ± 10 % 22.1mm
    W min. 1.1mm
    W ± 20 % 1.1mm
    ∅H max. b 9.7mm
    ∅H min. a 19.3mm
    ∅J max. b 9.7mm
    ∅J min. a 19.3mm
    Adhesive W8
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660442728
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
