2-Way Outlet Shapes, VG style
Art.-No. 402-03022 | 203-1-J-PO-X-BK |  Details

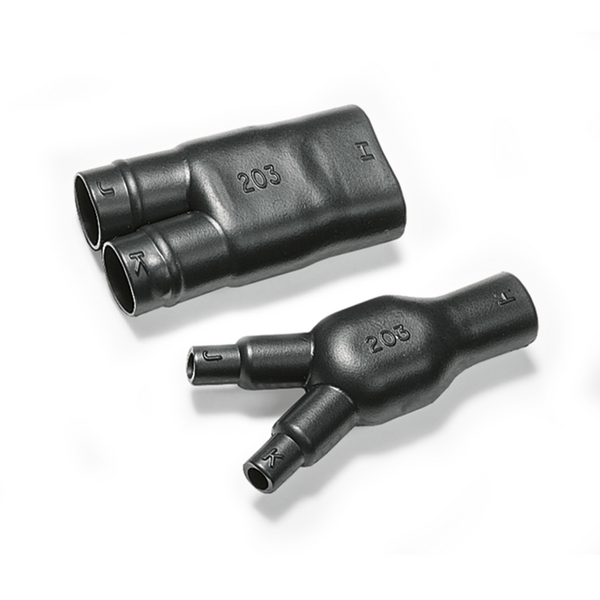

203-1 supplied / fully recovered.

    • Mechanical tension relief in cable harnesses
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 203-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 200 Series
    Product Group 2-Way Outlet Shapes, VG style
    Type 203-1-J
    Variant For 2-core cables
    HW ± 30 % 2.5mm
    JW nom. 1.5mm
    JW/KW ± 30% 1.5mm
    P ± 10 % 80mm
    P ±10%=overall length 80mm
    R nom. 38mm
    R ± 10 % 43mm
    S nom. 43mm
    ∅H max. b 12mm
    ∅H min. a 27mm
    ∅J max. b 6mm
    ∅J min. a 13mm
    ∅J/K max. b 6mm
    ∅J/K min. a 13mm
    ∅K max. b 6mm
    ∅K min. a 13mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Nato number 5970-00-911-9530
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660443749
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
