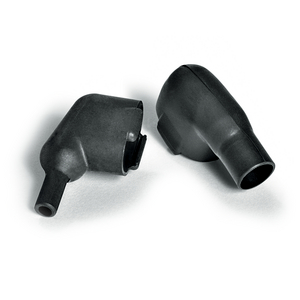

Connector Cover for Min-D Series
Art.-No. 421-02004 | 2102-1-G-PO-X-BK Details

  • Provides strain relief and mechanical protection for Min-D series connectors
  • Unique design allows perfect 90° orientation on installation
  • Can be supplied with or without lips in a range of material and adhesive combinations to suit most applications
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 2102-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 2100 Series, with 90° entry
Product Group Connector Cover for Min-D Series
Type 2102-1-G
Angle 90
Flexibility semi rigid
P nom. 30.7mm
P ± 10 % 30.7mm
R nom. 24.6mm
R ± 10 % 24.6mm
S ± 10 % 18.5mm
V ± 10 % 15.0mm
W ± 20 % 1.0mm
∅H max. b 28.2mm
∅H min. a 28.1mm
∅J max. b 10.7mm
∅J min. a 10.6mm
∅K max. b 5.3mm
∅K min. a 10.1mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660444982
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
