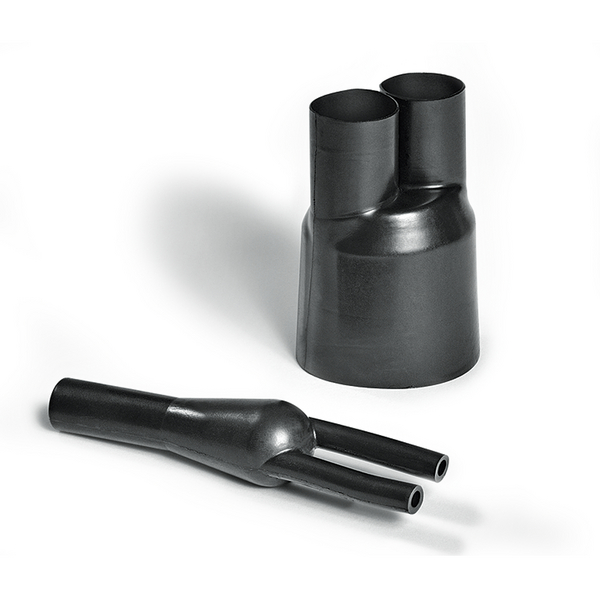

2-Way Outlet Shapes, Breakout Boots
Art.-No. 402-23075
| 223-2-J-PO-X-BK
|
Details
- Easy, time-saving insulation of cable branch point where it splits into single wires
- Adhesive is applied to relieve mechanical tension in cable harnesses
More products in this product group:
| Application | Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 223-2-J-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | bag |
| Product Family | Helashrink 200 Series, in line, low voltage |
| Product Group | 2-Way Outlet Shapes, Breakout Boots |
| Shrink Ratio | up to 3:1 |
| Type | 223-2-J |
| Variant | For 2-core cables |
|
|
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ min. | 4.0mm |
| Flexibility | Flexible |
| HW ± 20 % | 1.5mm |
| JW ± 20 % | 1.2mm |
| P ± 10 % | 94mm |
| R ± 10 % | 30mm |
| Recov. ∅ d max. | 9.4mm |
| S nom. | 20mm |
| Supplied ∅ D min. | 33.0mm |
| Wire Size Range (mm²) | 4.0-35.0mm |
| ∅H max. b | 9.4mm |
| ∅H min. a | 33mm |
| ∅J max. b | 4.1mm |
| ∅J min. a | 17.5mm |
| ∅K max. b | 4.1mm |
| ∅K min. a | 17.5mm |
