01/11/2024

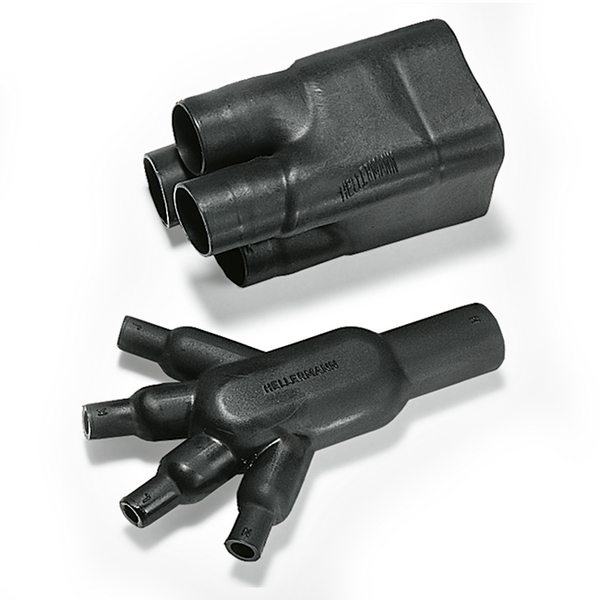

4-Way Outlet Shapes, VG style
Art.-No. 404-03009 | 403-1-H-PO-X-BK Details

  • 4-way outlet shape
  • Cable sealing, strain relief and mechanical protection
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 403-1-H-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 400 Series
Product Group 4-Way Outlet Shapes, VG style
Shrink Ratio up to 3:1
Type 403-1-H
Variant For 4-core cables
Flexibility Flexible
JW ± 30 % 1.5mm
P ± 10 % 102mm
P ±10%=overall length 102mm
R nom. 49mm
R ± 10 % 52mm
S nom. 45mm
S ± 10 % 45mm
T ± 10 % 49mm
∅H max. b 13mm
∅H min. a 27mm
∅J max. b 7mm
∅J min. a 13mm
∅J/K/L/N max. b 7mm
∅J/K/L/N min. a 13mm
∅K max. b 7mm
∅K min. a 13mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Halogen-free Yes
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660461293
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
