4-Way Outlet Shapes, Breakout Boots
Art.-No. 404-39005 | 439-2-B7-PO-X-BK |  Details

400 series supplied / fully recovered.

    • Easy, time-saving insulation of cable branch point where it splits into single wires
    • Made of tough, cross-linked, Polyolefin
    • Adhesive is applied to relieve mechanical tension in cable harnesses
    Add to watchlist
    Downloads
    Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 439-2-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series, in line, low voltage
    Product Group 4-Way Outlet Shapes, Breakout Boots
    Shrink Ratio up to 3:1
    Type 439-2-B7
    Variant For 4-core cables
    Flexibility semi rigid

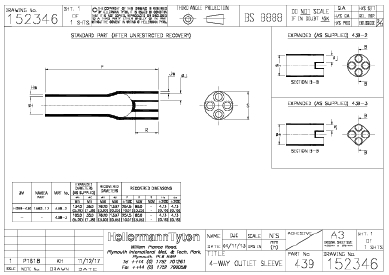

    HW ± 20 % 4.13mm
    JW ± 20 % 4.13mm
    P ± 10 % 254.5mm
    R ± 10 % 85mm
    ∅H max. b 76.2mm
    ∅H min. a 134mm
    ∅J max. b 13.97mm
    ∅J min. a 35mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
