Low Profile Transition Boots
Art.-No. 422-60102 | 573H533-PO-X-BK |  Details

573H532-535 Series supplied / fully recovered.

    • For cable harness breakouts or transitions
    • Strain relief, sealing and mechanical protection
    Add to watchlist
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 573H533-PO-X-BK
    Pack Cont. 5pcs.
    Package Content packed in bag
    Product Family Helashrink 573H Series, 1 to 3 cables
    Product Group Low Profile Transition Boots
    Shrink Ratio 3:1
    Type 573H533
    Variant For 3-core cables
    Flexibility Flexible

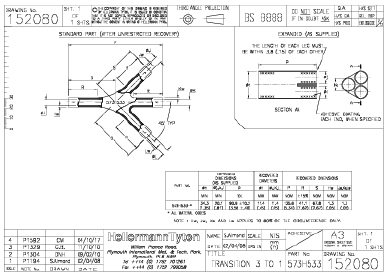

    HO/JO/KO ± 3.8 41.1mm
    P nom. 135.6mm
    P ± 10 % 135.6mm
    R/S/T nom. 67.8mm
    W nom. 1.3mm
    Weight/Unit 0.018kg
    ∅H max. b 11.4mm
    ∅H min. a 34.2mm
    ∅J max. b 11.4mm
    ∅J min. a 2.5mm
    ∅J/K/L max. b 11.4mm
    ∅J/K/L min. a 2.5mm
    ∅K max. b 11.4mm
    ∅K min. a 2.5mm
    Dielectric Strength 20kV/mm
    Dielectric Strength test method IEC 243
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660467875
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
