Cable Repair Kit
Art.-No. 380-04012 | Crimp Connector-PO-X/SNCU-BU | Details

Fast, safe and labour-saving repair of cable and wires
No need for concealed sockets or wire insertion, with subsequent cost savings
Available as a kit for simple and easy handling
Use of high-quality products from HellermannTyton:

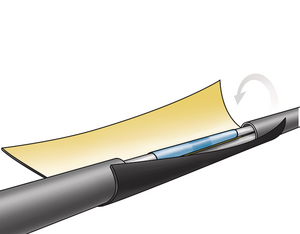

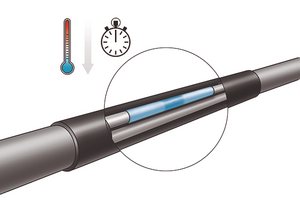

1x heat shrinkable tubing, length 200 mm, shrink ratio 4:1, excellent insulation and can be cut for installation

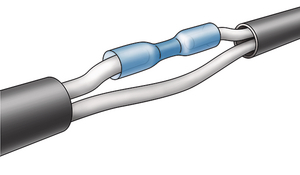

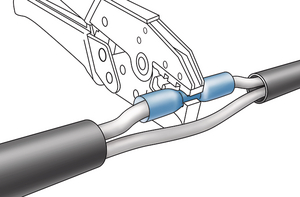

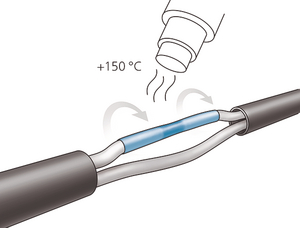

5x crimp connectors with heat shrinkable insulation and adhesive liner

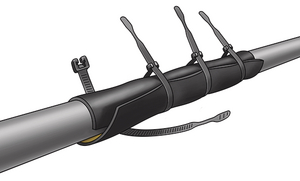

4x Q-tie heat stabilised cable ties with innovative and time-saving open-head design

More products in this product group:

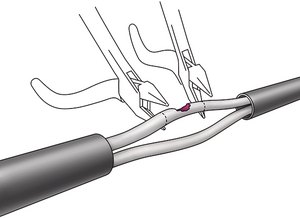

Application	The Cable Repair Kit LVRK is a solution for the fast and safe repair of damaged cable and wires in electrical installations. Damaged cable jackets and wires can be repaired safely and durably, saving time and labour
Colour	Blue (BU)
Description	Crimp Connector
Material	Polyolefin, cross-linked (PO-X), Tin-plated copper (SNCU)
PART DESCRIPTION	Crimp Connector-PO-X/SNCU-BU
Pack Cont.	1Set
Package Content packed in	bag
Product Family	Crimp Connector
Product Group	Cable Repair Kit
Shrink Ratio	3:1
Type	Crimp Connector
Variant	Shrink Cast
With inner glue (Yes/No)	Yes

Conductor Size Range mm²	1.5 - 2.5mm²
Length (L)	38mm
Longitudinal Change After Shrinkage	-10% max.
Recov. ∅ d max.	1.8mm
Supplied ∅ D min.	5.0mm
Wall (WT)	1.52mm
Wire Size Range (mm²)	1.5-2.5mm²
