Two-Component Adhesive for Heat Shrinkable Tubing and Shapes
Art.-No. 627-95011 | V9500NOZZLE-N10-PO-CL |  Details

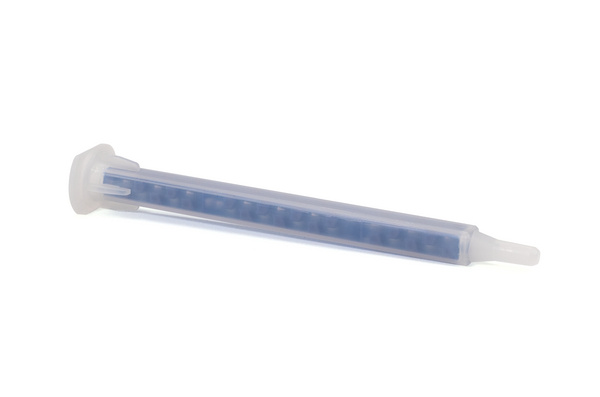

Mixing nozzle for V9500 2k epoxy adhesive cartridge.

    • High performance, two-part epoxy adhesive
    • Very resistant to most solvents and fuels, even at elevated temperatures
    • Two different packages available
    • V9500 available in 10g sachets for manual mixing
    • Processing set: emery paper, small mixing bowl and wooden spatula
    • High performance bonding
    • Meets military requirements for heat shrinkable components for harnesses
    Show more
    Add to watchlist
    Downloads Datasheet
    Colour Transparent (CL)
    Material Polyolefin (PO)
    PART DESCRIPTION V9500NOZZLE-N10-PO-CL
    Pack Cont. 10pcs.
    Package Content packed in pack
    Product Family V9500
    Product Group Two-Component Adhesive for Heat Shrinkable Tubing and Shapes
    Type V9500NOZZLE-N10
    Curing Time 24 hours at +25 °C, 2 hours at +85 °C
    Weight/Unit 0.0027kg
    Curing Temperature +135 °C
    Designation as per VG-Norm VG 95343 T15 MA
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Insulating (Yes/No) No
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications VG 95343-15:2019-08
    Country of Origin CN
    Customs Number 82055980
    GTIN-13 / EAN 4031026520261
    Packaging 1 - Height (m) 0.015m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00038m³
    Packaging 1 - Weight (kg) 0.027kg
    Packaging 1 - Width (m) 0.125m
    ETIM 7.0 Key EC003019
    ETIM 8.0 Key EC003019
    ETIM 9.0 Key EC003019
